SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram

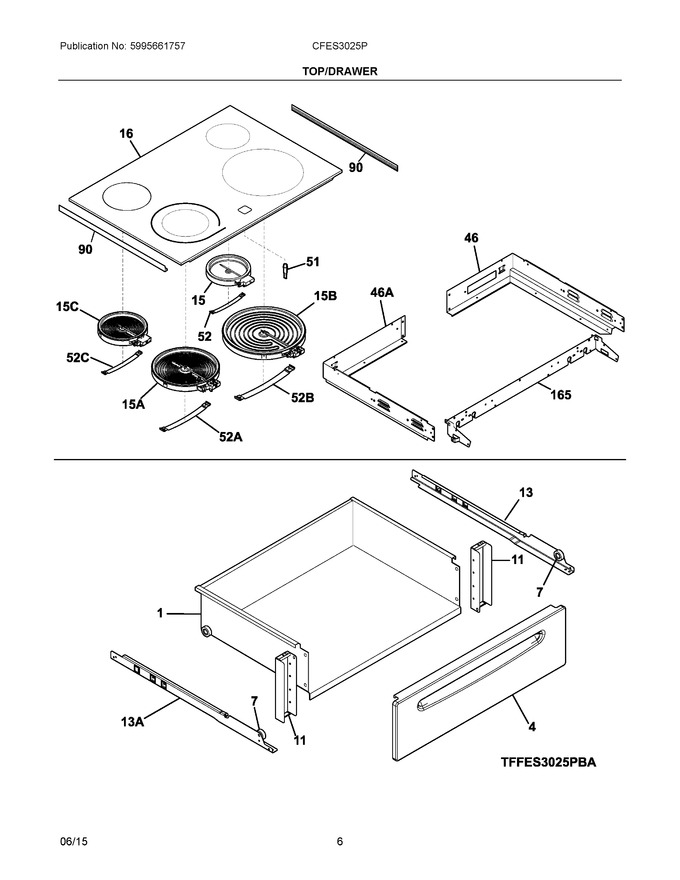

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107105)			Immediately	$ 159.32
4	318298906		Panel, Drawer, White, Front				$ 145.30
7	318332200		Roller, Nylon		Appelez-nous	-
11	318298600		Bracket, Drawer Support, (2)				$ 62.69
13	318018100		Channel, Drawer, Rh			Immediately	$ 30.01
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 136.51
16	139033804		Smoothtop Assembly, Glass, Black				$ 206.80
46	318568200		Box, Burner, Rh				$ 23.99
51	318044831		Light, Indicator, Natural, (4)				$ 18.54
52	318122006		Spring, Element Mtg, Small				$ 73.61
90	318368001		Channel, Glass Protector, (2)				$ 22.98
165	318227520		Plate, Mounting				$ 47.99
13A	318018101		Channel, Drawer, Lh				$ 63.11
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 100.15
15B	316291200		Element, Surface, 12", 2700w			Immediately	$ 261.45
15C	318198851		Element, Surface, 7", 1500w				$ 208.97
46A	318568201		Box, Burner, Lh				$ 28.93
52A	318122010		Spring, Element Mtg, 3000w				$ 69.46
52B	318122011		Spring, Element Mtg, 1200w/1800w				$ 69.04
52C	318122004		Spring, Element Mtg, 700w & 2100w				$ 55.76
NI	318531701		Spacer, (2)				$ 13.39
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304520768		Harness, Wiring, Surface Units   (Replaces: 808608901)				$ 136.51
NI	318532147		Ground Wire, W/terminal		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NIA	318231876		Harness, Wiring, Pilot Light				$ 35.44

    View Diagram in Separate Window       Print Part List
