Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13109402WQ Refrigerator Door (w/insulation) (white)   (Replaces: 13109402W) Special Order $ 1,100.83

2 67001141 Bucket, Small   (Replaces: 12557202) In-Stock Immediately $ 78.91

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WP67001021 Bucket, Medium   (Replaces: 12557204) Special Order $ 84.95

6 Y12528501 Nameplate (stainless)   (Replaces: 12528501) In-Stock Immediately $ 62.74

7 WPW10443309 Gasket, Door Magnetic (white)   (Replaces: W10443309) In-Stock Immediately $ 365.24

8 WPW10222984K Handle, Door (white)   (Replaces: W10222984) Special Order $ 205.46

9 WPW10288153 Screw   (Replaces: W10288153) In-Stock Immediately $ 9.65

10 WP67001130 Plug, Button (white)   (Replaces: 12246607) In-Stock Immediately $ 5.98

11 67001139 Retainer, Door   (Replaces: 12557904) In-Stock Immediately $ 104.79

12 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

13 12968202W Stop, Door (white)   (Replaces: 10447111) Special Order $ 69.29

10A WP12246608 Plug, Button (black)   (Replaces: 12246608) In-Stock Immediately $ 8.15

10B WP12246610 Plug, Button (grey)   (Replaces: 12246610) In-Stock Immediately $ 8.15

13A W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.75

13B W11401472 Stop, Door (grey)   (Replaces: 10447114) In-Stock Immediately $ 23.56

1A 13109402BQ Refrigerator Door (w/insulation) (black)   (Replaces: 13109402B) Special Order $ 931.31

1B 13107553SQ Refrigerator Door (w/insulation) (stainless)   (Replaces: 13107553S) Special Order $ 1,311.81

7A W11676571 Gasket, Door Magnetic (grey)   (Replaces: W10443310) Special Order $ 227.86

8A W11351146 Handle, Door (black)   (Replaces: W10222985) Special Order $ 189.08

8B W11351147 Handle, Door (stainless)   (Replaces: W10223019) Special Order $ 198.22


    View Diagram in Separate Window     Print Icon   Print Part List

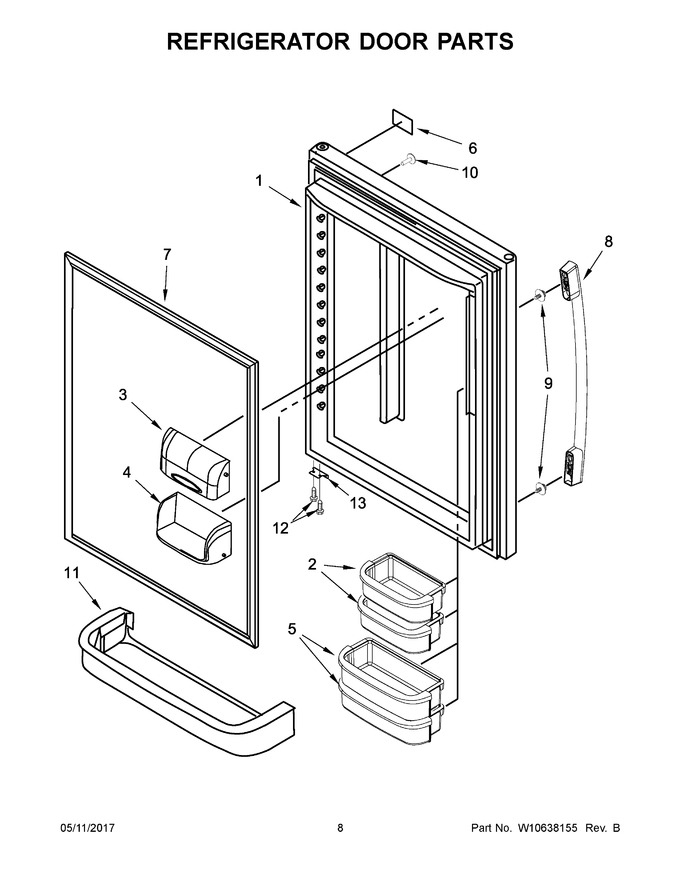

Diagram for ABB1921BRM00
