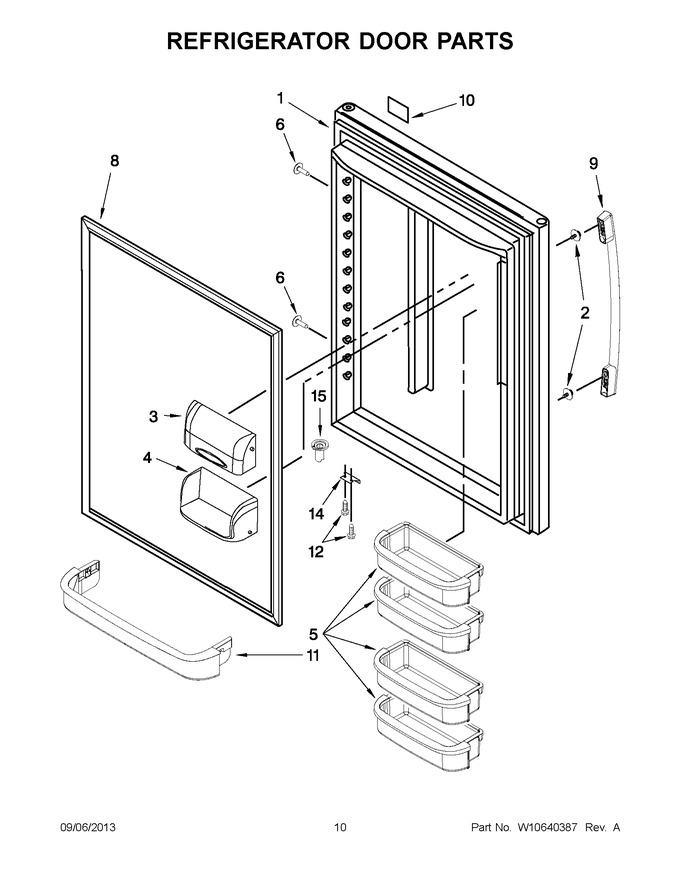

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109401BQ | Refrigerator Door (w/liner) (black) (Replaces: 13109401B) |
|
$ 1,073.65 | |||||
| 1 | 13107554SQ | Refrigerator Door (w/liner) (stainless) (Replaces: 13107554S) |
|
$ 1,166.29 | |||||
| 1 | 13109401WQ | Refrigerator Door (w/liner) (white) (Replaces: 13109401W) |
|
$ 1,073.65 | |||||
| 2 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67001021 | Bucket, Medium (Replaces: 12557204) |
|
$ 84.95 | |||||
| 6 | WP67001130 | Plug-button (white) (Replaces: 12246607) |
|
Immediately | $ 8.21 | ||||
| 6 | WP12246608 | Plug-button (black) (Replaces: 12246608) |
|
Immediately | $ 8.15 | ||||
| 6 | WP12246610 | Plug-button (stainless) (Replaces: 12246610) |
|
Immediately | $ 8.15 | ||||
| 8 | W10443314 | Door Gasket, Magnetic (grey) (Replaces: W10571963) |
|
Immediately | $ 349.07 | ||||
| 8 | W10443313 | Door Gasket, Magnetic (white) (Replaces: W10571964) |
|
$ 361.01 | |||||
| 9 | W11351147 | Door Handle (stainless) (Replaces: W10223019KN) |
|
$ 198.22 | |||||
| 9 | W11351146 | Door Handle (black) (Replaces: W10222985KN) |
|
$ 189.08 | |||||
| 9 | WPW10222984K | Door Handle (white) (Replaces: W10222984KN) |
|
$ 205.46 | |||||
| 10 | Y12528501 | Nameplate (stainless) (Replaces: 12528501) |
|
Immediately | $ 62.74 | ||||
| 11 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 | ||||
| 12 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 14 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 14 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 14 | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 23.56 | ||||
| 15 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 15 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 |
