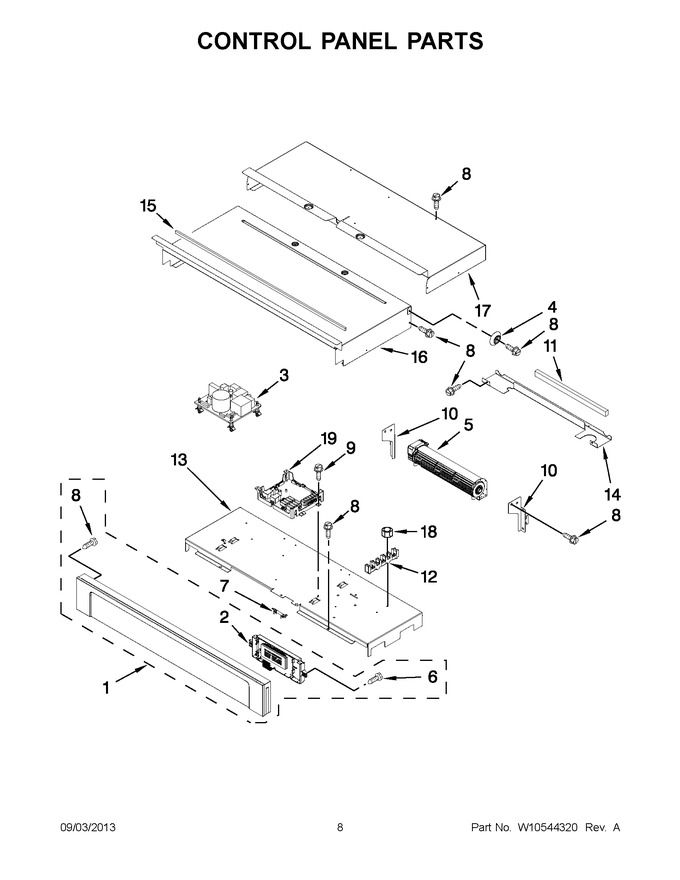

05 - Control Panel Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10540093 | Assembly, Control Panel (includes Overlay) (black) |
|
- | |||||
| 1 | W10540094 | Assembly, Control Panel (includes Overlay) (white) |
|
- | |||||
| 1 | W10540092 | Assembly, Control Panel (includes Overlay) (stainless) |
|
$ 436.94 | |||||
| 2 | W10496841 | Board, Navigator |
|
- | |||||
| 3 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 4 | W10363824 | Spacer, Lateral |
|
- | |||||
| 5 | WPW10260254 | Blower (Replaces: W10260254) |
|
Immediately | $ 208.70 | ||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 8.76 | ||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10436434) |
|
Immediately | $ 28.25 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10351257 | Bracket, Blower (left) |
|
- | |||||
| 10 | W10283078 | Bracket, Blower (right) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 13 | W10283005 | Tray, Electronic |
|
- | |||||
| 14 | W10509164 | Chassis, Divider Back |
|
- | |||||
| 15 | WPW10657548 | Gasket, Rubber (Replaces: W10351292) |
|
$ 89.66 | |||||
| 16 | W10318193 | Chassis, Cover Top Front 27`` |
|
$ 136.08 | |||||
| 17 | W10318195 | Chassis, Cover Top Back 27`` |
|
$ 111.04 | |||||
| 18 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 19 | WPW10496830 | Manager, Appliance (Replaces: W10496830) |
|
$ 432.25 |
