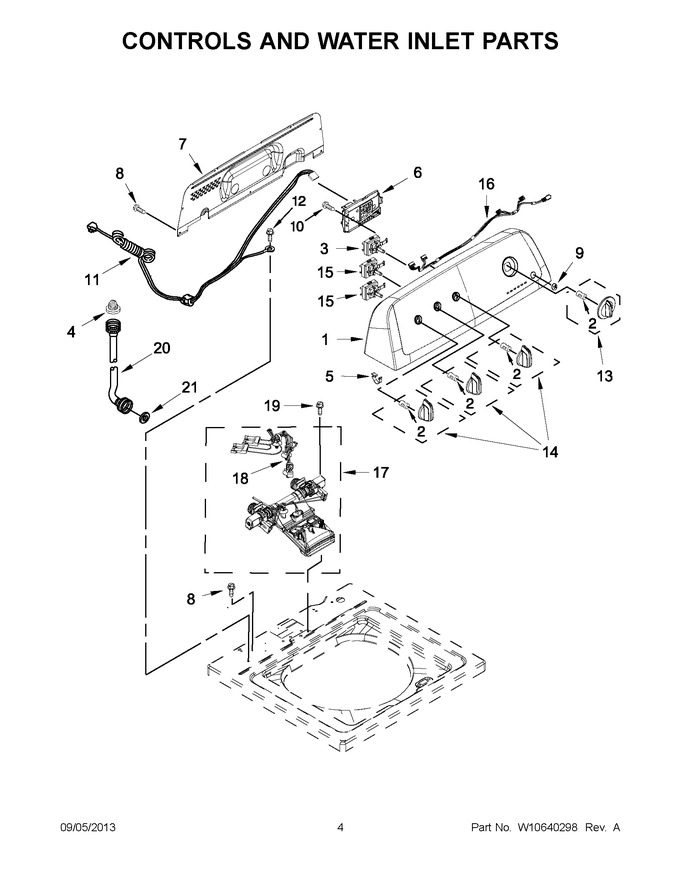

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10552346 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | W11168256 | Switch, Rotary Encoder (2 Position) (Replaces: W10414381) |
|
Immediately | $ 219.11 | ||||
| 4 | 285452A | Washer, Filter (Replaces: 353362) |
|
Immediately | $ 9.69 | ||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 6 | W10570356 | Control Unit Assembly |
|
- | |||||
| 7 | W10409320 | Panel, Console Rear Cover |
|
$ 263.79 | |||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 9 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 76.00 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 11 | WPW10525192 | Cord, Power (Replaces: W10525192) |
|
$ 163.02 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10453946) |
|
Immediately | $ 8.33 | ||||
| 14 | WPW10453947 | Assembly, Control Knob (white) (Replaces: W10453947) |
|
$ 54.76 | |||||
| 15 | WPW10414397 | Switch, Rotary Encoder (3 Position) (Replaces: W10414397) |
|
$ 136.10 | |||||
| 16 | W10291183 | Harness, Upper |
|
$ 156.04 | |||||
| 17 | WPW10683653 | Inlet Assembly, Water (Replaces: W10472844) |
|
$ 216.49 | |||||
| 18 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 194.92 | |||||
| 19 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 20 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194210) |
|
Immediately | $ 24.09 | ||||
| 20 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: W10194211) |
|
Immediately | $ 24.09 | ||||
| 21 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 8.16 |
