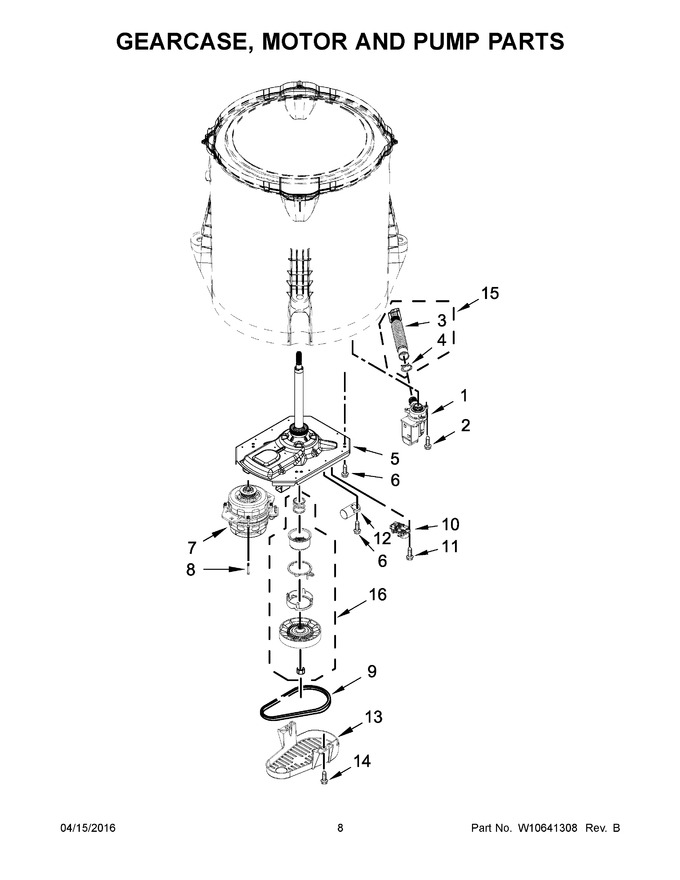

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10465543 | Pump Assembly, Drain (Replaces: W10465543) |
|
$ 306.08 | |||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 34.08 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 5 | W11454741 | Gearcase Assembly (Replaces: W10473144) |
|
Immediately | $ 300.01 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.19 | ||||
| 7 | WPW10677715 | Motor, Drive (Replaces: W10677715) |
|
Immediately | $ 319.84 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.10 | |||||
| 9 | WPW10006384 | Belt, Drive (Replaces: W10006384) |
|
Immediately | $ 38.66 | ||||
| 10 | WPW10006355 | Actuator, Shift (Replaces: W10006355) |
|
Immediately | $ 78.13 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 13.55 | |||||
| 12 | W11158830 | Capacitor, Motor Run (Replaces: W10625045) |
|
Immediately | $ 126.66 | ||||
| 13 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 47.41 | ||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.82 | ||||
| 15 | W10899966 | Hose, Inner Drain Assembly Complete (Replaces: W10444123) |
|
Immediately | $ 34.08 | ||||
| 16 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 55.68 |
