Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2316031B Refrigerator Door (includes Item 9 & Molded Door Handle) (black) Appelez-nous -
1 W10251797 Refrigerator Door (includes Item 9 & Molded Door Handle) (stainless Steel) Appelez-nous -
1 2316366W Refrigerator Door (includes Item 9 & Molded Door Handle) (white) Appelez-nous -
2 W11129820 Trim, Door   (Replaces: W10234242) In-Stock Immediately $ 127.34

3 W11178521 Nameplate (grey)   (Replaces: W10481433) In-Stock Immediately $ 63.13

3 W11178521 Nameplate (white)   (Replaces: W10481434) In-Stock Immediately $ 63.13

4 WP2266727 Trim, Door   (Replaces: 2266727) In-Stock Immediately $ 92.50

5 W10276642 Screw   (Replaces: 8533904) Special Order $ 6.41

6 W11745278 Bracket, Door Stop   (Replaces: 2189202) In-Stock Immediately $ 13.37

7 WP2212651 Hole Plug (black)   (Replaces: 2212651) Special Order $ 24.21

7 WP2212648 Hole Plug (white)   (Replaces: 2212648) In-Stock Immediately $ 8.19

8 WP2207942 Door, Compartment   (Replaces: 2207942) In-Stock Immediately $ 58.76

9 2319266B Door Gasket, Magnetic (black)   (Replaces: 2264725) Special Order $ 376.51

9 WP2319266T Door Gasket, Magnetic Beige   (Replaces: W10190034) Special Order $ 171.60

10 WP2266738 Trim, Door   (Replaces: 2266738) Special Order $ 111.69

11 WP2195916K Endcap, Door Trim   (Replaces: 2195916) In-Stock Immediately $ 13.18

12 WP2156003 End Cap, Door Trim   (Replaces: 2156003) In-Stock Immediately $ 13.25

13 2265678B Freezer Door (includes Item 14 & Molded Door Handle) (black) Appelez-nous -
13 2263251W Freezer Door (includes Item 14 & Molded Door Handle) (white) Appelez-nous -
13 W10209802 Freezer Door (includes Item 14 & Molded Door Handle) (stainless Steel) Appelez-nous -
14 WP2319263B Door Gasket, Magnetic (black)   (Replaces: 2264722) In-Stock Immediately $ 268.28

14 WP2319263T Door Gasket, Magnetic (beige)   (Replaces: W10190031) In-Stock Immediately $ 169.53

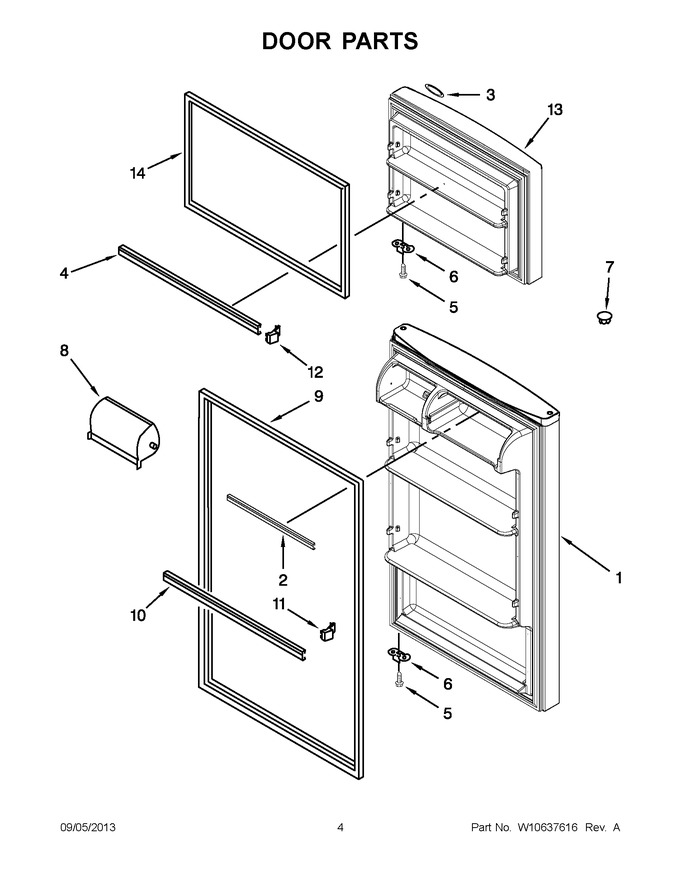

    View Diagram in Separate Window     Print Icon   Print Part List
