SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Top Grille And Unit Cover Parts


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Ice Maker Parts

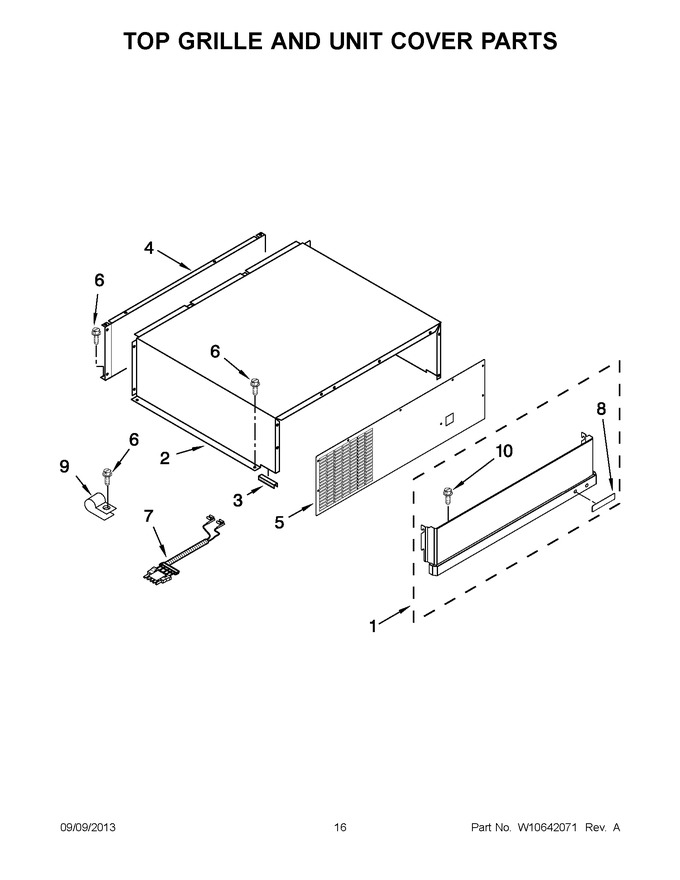

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10516873		Top Grille Assembly (stainless Rh)		Appelez-nous	-
1	W10516872		Top Grille Assembly (stainless Lh)		Appelez-nous	-
2	W10624563		Cover, Unit		Appelez-nous	-
3	2215910		Grommet, Flexible				$ 94.32
4	2256466		Panel, Unit Back				$ 327.22
5	W10185625		Unit Cover, Front				$ 262.53
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2187894		Wire Assembly, Light Switch		Appelez-nous	-
8	WPW10214168		Nameplate (stainless)   (Replaces: W10214168)				$ 85.95
9	489348		Clamp, Tube		Appelez-nous	-
10	WP489399		Screw   (Replaces: 489399)				$ 7.30

    View Diagram in Separate Window       Print Part List
