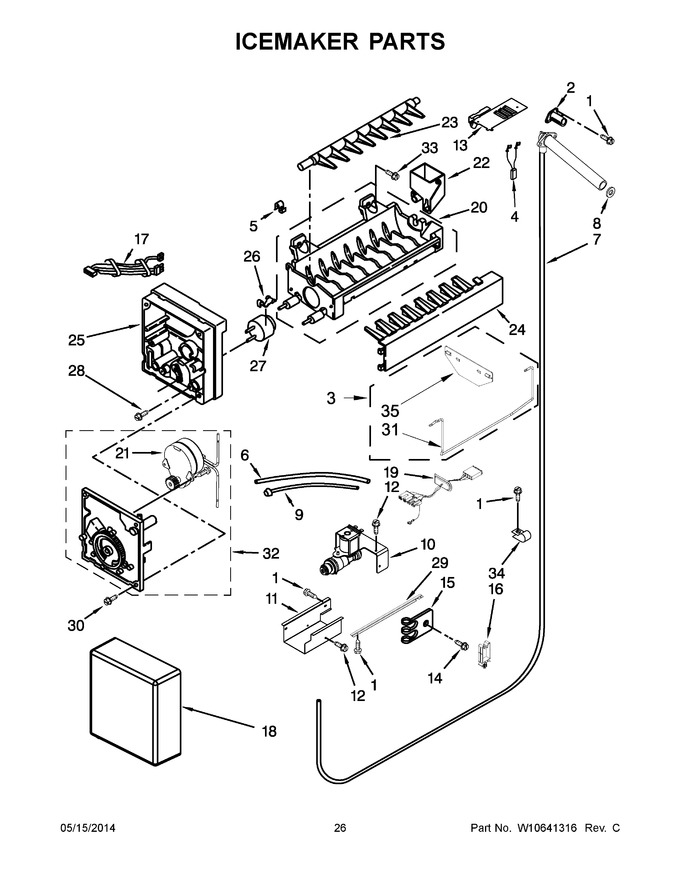

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11624204		Screw   (Replaces: 486194)				$ 14.72
2	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 206.58
3	W11807379		Assembly, Shut Off Arm   (Replaces: 2304354)			Immediately	$ 63.21
4	W10482373		Wire Assembly, Fill Tube Heater				$ 125.10
5	WP628379		Clip, Thermal Fuse   (Replaces: 628379)				$ 11.10
6	W11565275		Tube, Filter Inlet   (Replaces: W10296807)				$ 67.89
7	W11662302		Assembly, Water Inlet Tube   (Replaces: 2314049)		Appelez-nous	-
8	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
9	W11533506		Tube, Filter Outlet   (Replaces: W10437853)			Immediately	$ 33.15
10	WP2307650		Valve, Solenoid   (Replaces: 2307650)			Immediately	$ 203.52
11	W10129653		Shield, Valve Electrical		Appelez-nous	-
12	00487294		Screw   (Replaces: 487294)				$ 175.09
13	WP2221231		Shield, Heat   (Replaces: 2221231)				$ 89.33
14	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
15	WP488366		Clip, Water Tube   (Replaces: 2208136)				$ 11.92
16	W10129069		Clip, Tube		Appelez-nous	-
17	W10508673		Wire Assembly, Ice Maker				$ 123.63
18	WPW10289690		Cover, Icemaker   (Replaces: W10289690)			Immediately	$ 8.82
19	W10279393		Wire Assembly, Water Valve				$ 157.07
20	WPW10190929		Assembly, Mold And Heater   (Replaces: W10122527)				$ 233.15
21	N/P		Motor (not Available, Order No.32)		Appelez-nous	-
22	W11676540		Cup, Water Fill   (Replaces: W10435665)				$ 22.65
23	WP627843		Ejector   (Replaces: 627843)				$ 87.78
24	WPW10122563		Stripper, Ice   (Replaces: W10122563)				$ 99.42
25	WP2195914		Support, Housing   (Replaces: 2194712)				$ 109.80
26	WP2315522		Retainer, Thermostat   (Replaces: 2315522)				$ 11.60
27	WP627985		Thermostat   (Replaces: 627985)				$ 114.64
28	W10001280		Screw		Appelez-nous	-
29	2320559		Support, Valve				$ 88.79
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	W11807379		Shut Off Arm   (Replaces: 2304352)			Immediately	$ 63.21
32	8201515		Assembly, Module And Motor   (Replaces: 626691)			Immediately	$ 141.64
33	W10141596		Screw				$ 9.22
34	W10833902		Clamp, Tube   (Replaces: 2221070)				$ 11.54
35	W11215550		Extension, Shut Off Arm   (Replaces: 2304353)			Immediately	$ 45.14
100	WPW10277450		Complete Icemaker Assembly   (Replaces: W10277450)			Immediately	$ 281.45
NI	REFDEODOR		Deodorizer Pack		Appelez-nous	-
NI	W10234156		Installation Block				$ 16.77
NI	W10355010		Kitchen And Appliance Cleaner		Appelez-nous	-
NI	W10355049		Ss Cleaning Wipes				$ 7.91
NI	W10488118		Template, Doors (wood Panel)				$ 118.67
NI	W10489178		Template, Grill (wood Panel)				$ 44.05
NI	W11175806		Install Kit   (Replaces: W10553982)				$ 279.62
NI	W10355016		Ss Cleaner		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
