01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)

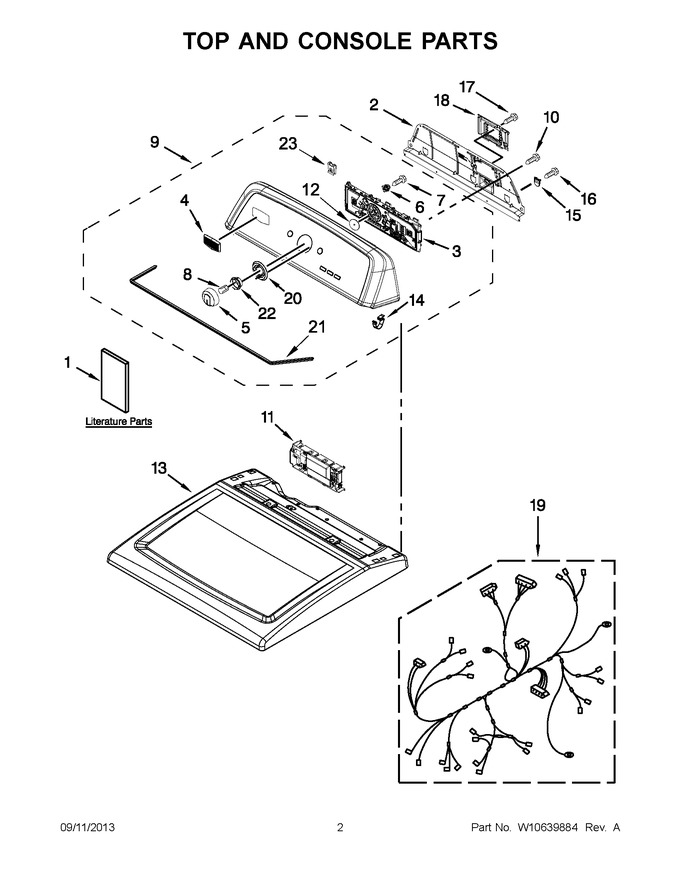

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10563341		Installation Instructions		Appelez-nous	-
1	W10259284		Wiring Diagram		Appelez-nous	-
1	W10417013		Tech Sheet		Appelez-nous	-
1	W10486877		Guide, Use & Care		Appelez-nous	-
2	W10550615		Panel, Rear Console				$ 105.15
3	WPW10272634		Assembly, User Interface   (Replaces: W10272634)				$ 282.50
4	W10492808		Badge				$ 53.84
5	WPW10251381		Assembly, Control Knob (silver)   (Replaces: W10251381)				$ 52.77
6	W10274524		Tensioner, Fascia		Appelez-nous	-
7	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
8	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
9	WPW10486876		Console Assembly (complete)   (Replaces: W10486876)				$ 265.10
10	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.43
11	WPW10317638		Control, Electronic   (Replaces: W10317638)				$ 310.19
12	W10323092		Seal, User Interface		Appelez-nous	-
13	WPW10268730		Top (white)   (Replaces: W10268730)				$ 311.27
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
15	W10279552		Plug, Upper Rear Panel		Appelez-nous	-
16	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
17	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.43
18	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 121.29
19	W10253981		Harness, Main		Appelez-nous	-
20	W10305134		Bezel, Cycle Trim				$ 23.73
21	W10280079		Seal, Console		Appelez-nous	-
22	W10326923		Spacer, Knob		Appelez-nous	-
23	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 7.32
