01 - Cover Sheet

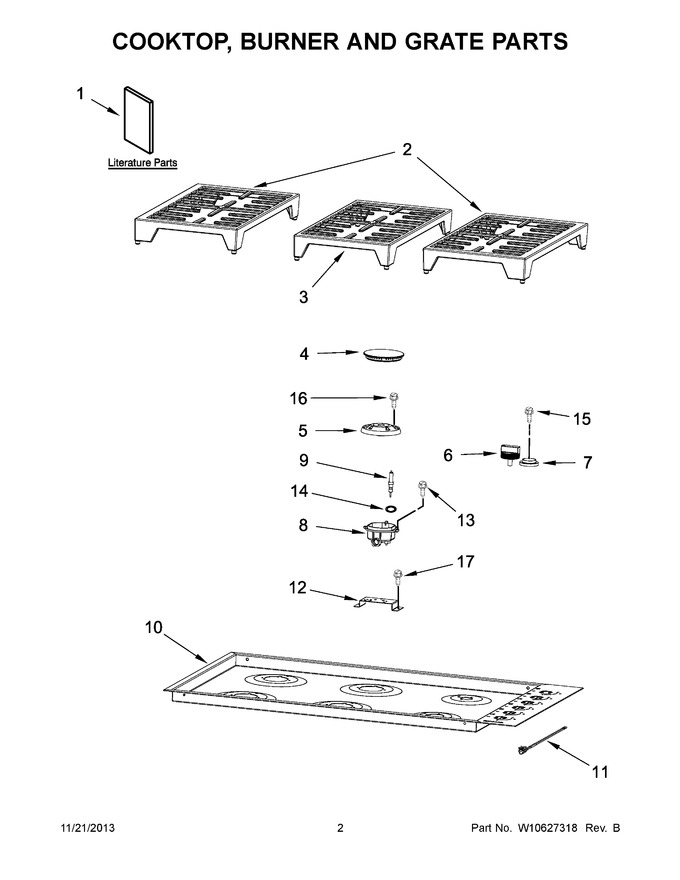

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10588276 | Lp Conversion Instructions |
|
- | |||||
| 1 | W10588275 | Instructions, Installation |
|
- | |||||
| 1 | W10588274 | Guide, Use & Care |
|
- | |||||
| 1 | W10620795 | Diagram, Wiring |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | W11677639 | Grate, Burner (side) (pro-line) (Replaces: W10617811) |
|
$ 479.59 | |||||
| 2 | WPW10617812 | Grate, Burner (side) (stainless Model) (Replaces: W10617812) |
|
$ 491.49 | |||||
| 3 | WPW10617814 | Grate, Burner (center) (stainless Model) (Replaces: W10617814) |
|
$ 392.74 | |||||
| 3 | WPW10617813 | Grate, Burner (center) (pro-line) (Replaces: W10617813) |
|
$ 465.92 | |||||
| 4 | WPW10617815 | Cap, Burner (black (large) (left Front, Left Rear, Center)) (Replaces: W10617815) |
|
Immediately | $ 290.39 | ||||
| 4 | W10617816 | Cap, Burner (black (medium) (right Front)) |
|
$ 80.54 | |||||
| 4 | W10617817 | Cap, Burner (black (small) (right Rear)) |
|
$ 190.46 | |||||
| 5 | W11197492 | Base, Burner (large (left Front, Left Rear, Center)) (Replaces: W10617818) |
|
Immediately | $ 142.30 | ||||
| 5 | W10617819 | Base, Burner (medium (right Front)) |
|
$ 93.27 | |||||
| 5 | W10617820 | Base, Burner (small (right Rear)) |
|
$ 85.77 | |||||
| 6 | W10620811 | Knob (pro-line) |
|
$ 100.99 | |||||
| 6 | WPW10620810 | Knob (stainless) (Replaces: W10620810) |
|
$ 182.49 | |||||
| 7 | W10618500 | Bezel, Knob (stainless) |
|
Immediately | $ 163.99 | ||||
| 8 | WPW10571491 | Holder Orifice (132mm) (right Front) (Replaces: W10571491) |
|
$ 75.12 | |||||
| 8 | W10618474 | Holder Orifice (193mm) (left Front) |
|
$ 129.28 | |||||
| 8 | WPW10571493 | Holder Orifice (170mm) (left Rear, Center Rear, Center Front) (Replaces: W10571493) |
|
$ 85.56 | |||||
| 8 | W10618475 | Holder Orifice (110mm) (right Rear) |
|
$ 81.05 | |||||
| 9 | W10617809 | Electrode (695mm) (left Front, Left Rear) |
|
$ 139.20 | |||||
| 9 | W10617808 | Electrode (395mm) (center Front, Center Rear) |
|
$ 96.03 | |||||
| 9 | W10623868 | Electrode (250mm) (right Rear) |
|
$ 78.91 | |||||
| 9 | W10617810 | Electrode (250mm) (right Front) |
|
Immediately | $ 81.63 | ||||
| 10 | WPW10618505 | Cooktop, Main (Replaces: W10618505) |
|
$ 2,508.44 | |||||
| 11 | W11807280 | Assembly, Indicatorlight (led) (Replaces: W10617592) |
|
$ 240.70 | |||||
| 12 | W10618476 | Bracket, Orifice Holder |
|
- | |||||
| 13 | W10626015 | Screw, Injector Holder |
|
$ 17.14 | |||||
| 14 | W10571930 | Clip, Electrode |
|
Immediately | $ 25.33 | ||||
| 15 | W10637348 | Screw |
|
Immediately | $ 30.69 | ||||
| 16 | W11676624 | Screw, Burner Base ( Large And Medium Burners ) (Replaces: W10626016) |
|
Immediately | $ 16.19 | ||||
| 16 | W10626017 | Screw, Burner Base ( Small Burner ) |
|
Immediately | $ 20.18 | ||||
| 17 | W10626012 | Screw , 8-32 X 1/4`` Pan Head |
|
- |
