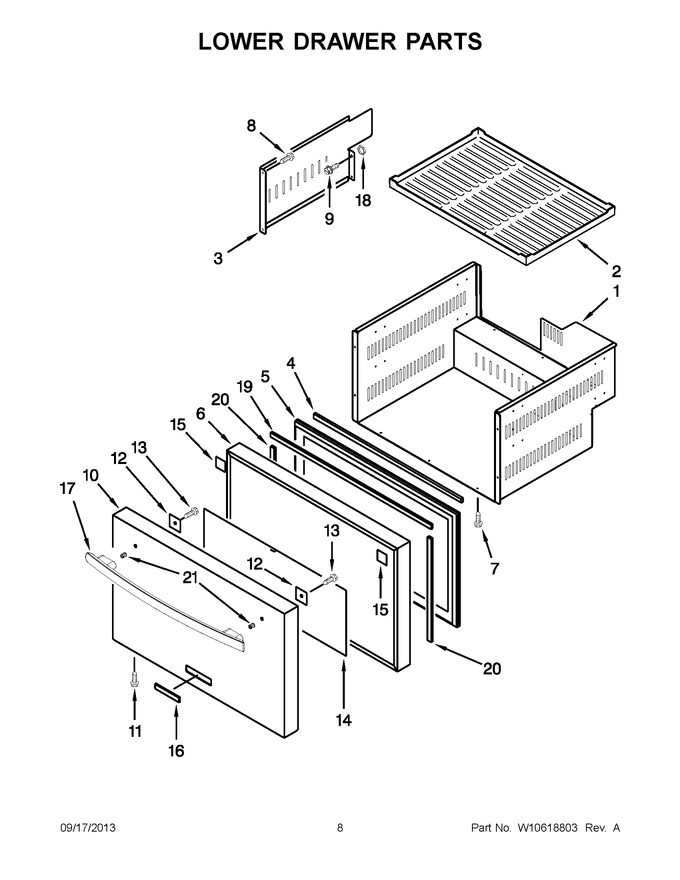

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10622024		Drawer Box Assembly, Lower		Appelez-nous	-
2	W10622026		Mat, Lower Drawer				$ 166.52
3	W10270489		Drawer Partition		Appelez-nous	-
4	W10281317		Cold Air Seal		Appelez-nous	-
5	WPW10622006		Gasket   (Replaces: W10622006)			Immediately	$ 164.78
6	W10622043		Door Assembly, Lower		Appelez-nous	-
7	W10204808		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W10622044		Overlay Installation Kit				$ 106.29
11	W10837731		Screw   (Replaces: W10204865)				$ 7.47
12	W10299088		Plate, Door Handle		Appelez-nous	-
13	W10859467		Screw, Handle   (Replaces: W10204866)				$ 72.21
14	W10204867		Wrap Spacer		Appelez-nous	-
15	W10204868		Wrap Gap Spacer		Appelez-nous	-
16	WPW10214168		Name Plate   (Replaces: W10292471)				$ 77.36
17	W10622019		Handle			Immediately	$ 324.81
18	W10204920		Nut		Appelez-nous	-
19	W10204889		Door Gasket, Long		Appelez-nous	-
20	W10204897		Door Gasket, Short		Appelez-nous	-
21	WP8564951		Stud, Handle Mounting   (Replaces: W10319166)			Immediately	$ 17.40

    View Diagram in Separate Window       Print Part List
