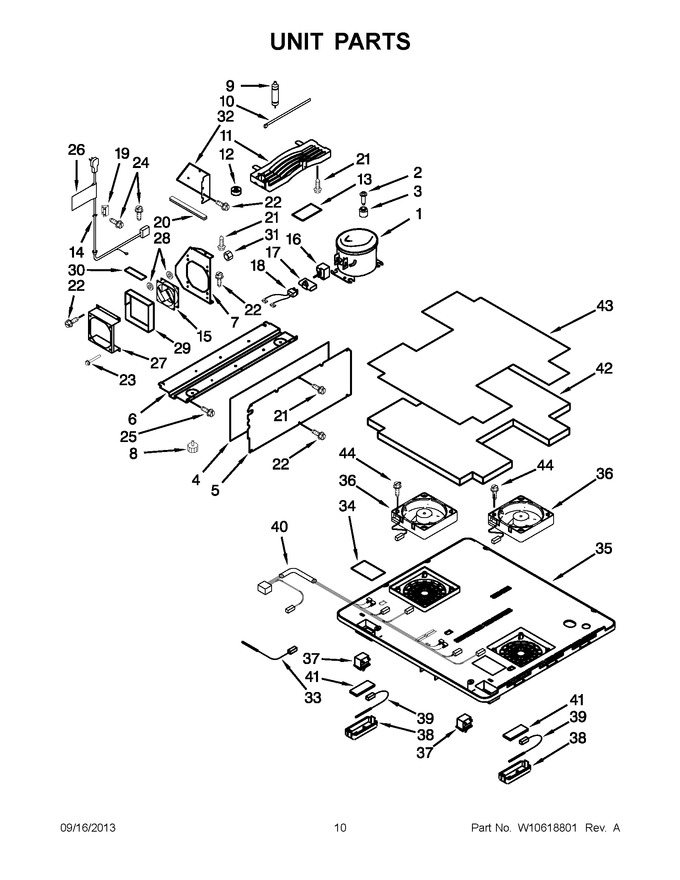

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10287744		Compressor   (Replaces: W10287744)				$ 501.46
2	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
3	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 8.47
4	W10204672		Rear Insulation		Appelez-nous	-
5	W10281501		Rear Cover		Appelez-nous	-
6	W10622029		Base Plate, Cabinet		Appelez-nous	-
7	W10204674		Air Baffle				$ 127.68
8	W11106296		Leg. Leveling   (Replaces: 4344763)				$ 19.03
9	W10163273		Drier				$ 103.41
10	4344829		Tie, Cable		Appelez-nous	-
11	W10316689		Drain Pan				$ 163.70
12	W10163276		Trap, Drain				$ 90.13
13	W10163274		Vibration Rubber		Appelez-nous	-
14	WPW10204676		Power Cord   (Replaces: W10204676)				$ 113.02
15	W10204677		Condenser Motor				$ 351.23
16	W10287745		Overload Relay		Appelez-nous	-
17	W10287848		Ptc Thermister				$ 173.32
18	W10287954		Capacitor		Appelez-nous	-
19	W10270517		Clamp, Cord				$ 79.51
20	4344907		Trim, Edge		Appelez-nous	-
21	4344825		Screw		Appelez-nous	-
22	4344832		Screw		Appelez-nous	-
23	W10270492		Bolt		Appelez-nous	-
24	4344826		Screw, Grille				$ 16.70
25	4344797		Screw		Appelez-nous	-
26	4344913		Warning Label		Appelez-nous	-
27	W10204687		Fan Cover		Appelez-nous	-
28	W10204688		Fan Bushing		Appelez-nous	-
29	W10204689		Vibration Rubber A		Appelez-nous	-
30	W10204690		Vibration Rubber B		Appelez-nous	-
31	W10270493		Nut		Appelez-nous	-
32	4344773		Bracket, Defrost Timer		Appelez-nous	-
33	W10205063		Defrost Sensor				$ 174.60
34	W10205062		Terminal Protector		Appelez-nous	-
35	W10622034		Cover, Fan		Appelez-nous	-
36	W10854409		Motor & Fan   (Replaces: W10204942)			Immediately	$ 313.91
37	W10270520		Door Switch		Appelez-nous	-
38	W10622036		Sensor Case		Appelez-nous	-
39	WPW10204946		Temp Sensor   (Replaces: W10204946)				$ 100.89
40	W10204947		Wire Harness		Appelez-nous	-
41	W10204948		Sensor Case Seal		Appelez-nous	-
42	W10281541		Insulation		Appelez-nous	-
43	W10281542		Plate Cover		Appelez-nous	-
44	W10205061		Screw		Appelez-nous	-
