| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10292433 |
|
Assembly, Freezer Door |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W11752085 |
 |
Assembly, Hinge (bottom) (Replaces: 2302879) |
|
|
|
$ 56.76 |
|
|
| 3 |
W11474472 |
 |
Screw (Replaces: W10162602) |
|
|
Immediately |
$ 7.77 |
|
|
| 4 |
W11673500 |
 |
Assembly, Hinge (top) (Replaces: W10485980) |
|
|
Immediately |
$ 117.33 |
|
|
| 5 |
W11673500 |
|
Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
|
Immediately |
$ 117.33 |
|
|
| 6 |
WP2266901 |
 |
Gasket, Door (Replaces: W10694138) |
|
|
|
$ 332.86 |
|
|
| 7 |
WP2316868 |
 |
Door, Handle (stainless) (Replaces: 2316868) |
|
|
Immediately |
$ 253.29 |
|
|
| 8 |
2309060 |
|
Spacer, Handle Side Door |
|
Appelez-nous
|
- |
|
|
|
| 9 |
W10523761 |
|
Skin, Door |
|
Appelez-nous
|
- |
|
|
|
| 10 |
WP8281250 |
 |
Screw (stainless) (Replaces: 8281250) |
|
|
|
$ 10.28 |
|
|
| 11 |
2005433 |
|
Spacer, Door Skin (top) |
|
|
|
$ 21.00 |
|
|
| 12 |
W10759522 |
 |
Screw (stainless) (Replaces: 488568) |
|
|
|
$ 7.42 |
|
|
| 13 |
2257386 |
|
Spacer, Door Skin Bottom |
|
Appelez-nous
|
- |
|
|
|
| 14 |
W10142296 |
|
Spacer, Hinge Side Door |
|
Appelez-nous
|
- |
|
|
|
| 15 |
WP308544 |
 |
Screw (Replaces: 308544) |
|
|
Immediately |
$ 7.47 |
|
|
| 16 |
W11590561 |
|
Bin, Shallow (Replaces: W10323603) |
|
|
|
$ 84.81 |
|
|
| 17 |
W10127710 |
|
Plate, Handle Door |
|
|
Immediately |
$ 23.35 |
|
|

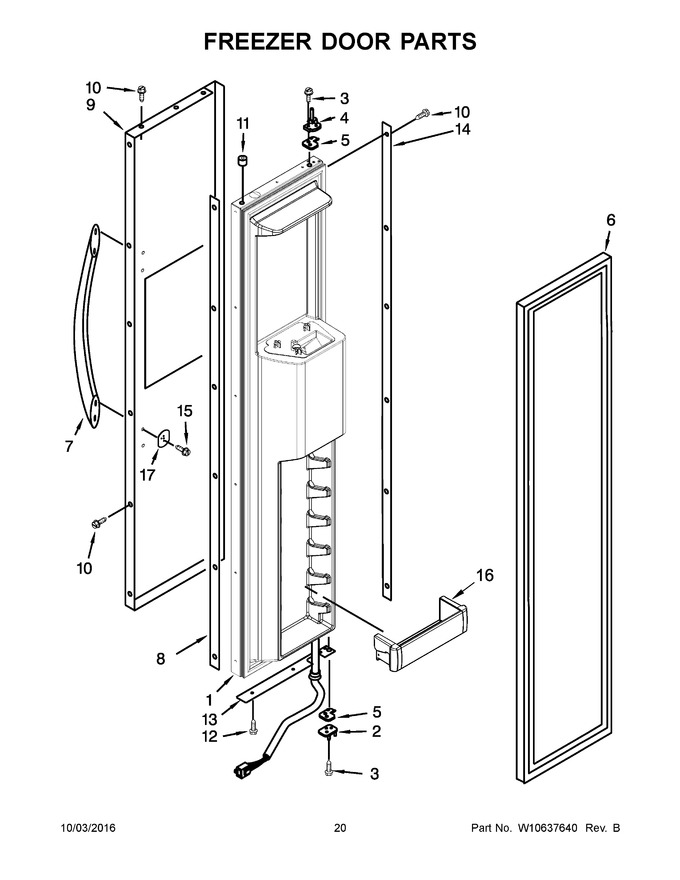

View Diagram in Separate Window
Print Part List
