View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

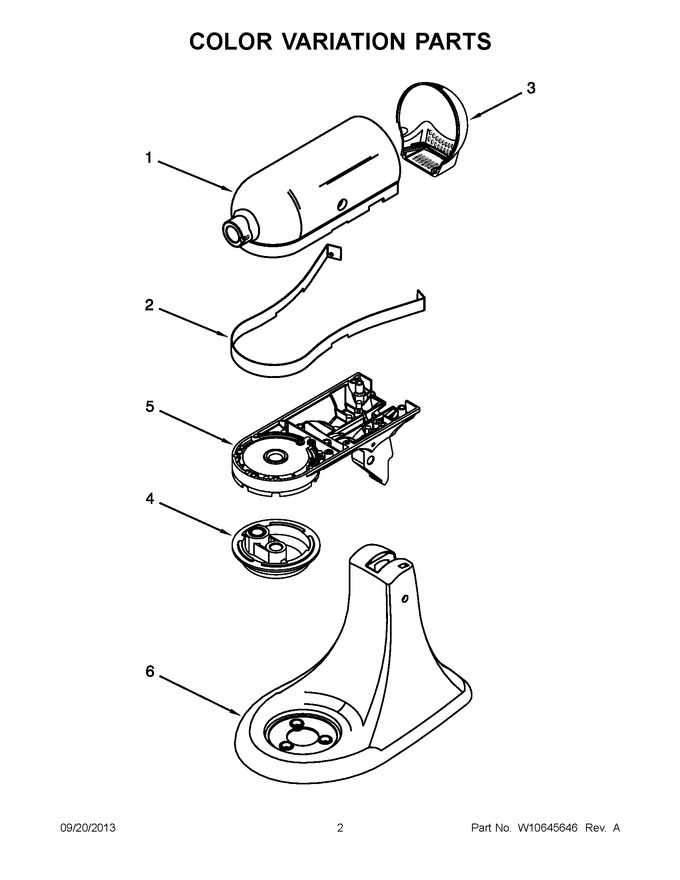

02 - Color Variation Parts
03 - Base And Pedestal Unit
04 - Case, Gearing And Planetary Unit
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10239115 | Motor Housing (candy Apple) |
|
$ 108.56 | |||||
| 2 | W10402188 | Trim Band (black) |
|
- | |||||
| 3 | WPW10239110 | End Cover (candy Apple) (Replaces: W10239110) |
|
$ 28.91 | |||||
| 4 | W10239112 | Planetary (candy Apple) |
|
$ 45.31 | |||||
| 5 | W10245786 | Lower Gearcase (candy Apple) |
|
- | |||||
| 6 | W11097313 | Pedestal W/feet (candy Apple) (Replaces: W10245720) |
|
- |
