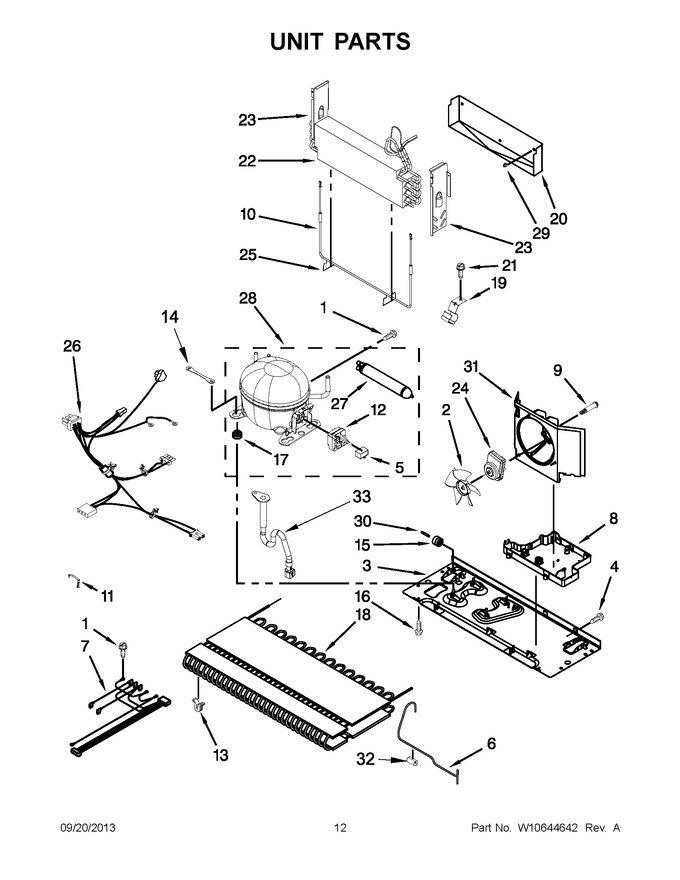

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W10480110 | Basepan |
|
$ 168.78 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 6 | W10306059 | Tube, Discharge |
|
$ 129.57 | |||||
| 7 | WPW10290745 | Harness, Evaporator (includes Defrost Thermostat) (Replaces: W10290745) |
|
Immediately | $ 255.98 | ||||
| 8 | WPW10655367 | Pan, Drain (Replaces: W10296784) |
|
Immediately | $ 85.17 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 10 | WP12729128 | Heater, Defrost (Replaces: 12729128) |
|
Immediately | $ 97.71 | ||||
| 11 | W10204187 | Strap, Bale |
|
- | |||||
| 12 | WPW10197428 | Start Device, Combination (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 13 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 8.76 | |||||
| 14 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 15 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | WPW10169124 | Grommet, Compressor (Replaces: 10835903SP) |
|
$ 7.55 | |||||
| 18 | WPW10346420 | Condenser (Replaces: W10346420) |
|
$ 294.36 | |||||
| 19 | W10281329 | Clip, Drier |
|
$ 13.73 | |||||
| 20 | WPW10292802 | Tray, Drip (Replaces: W10292802) |
|
$ 185.58 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| 22 | W11459354 | Evaporator Kit (Replaces: W10317013) |
|
Immediately | $ 170.02 | ||||
| 23 | 12225702 | Dam (right Hand) |
|
$ 14.09 | |||||
| 23 | 12225602 | Dam (left Hand) |
|
$ 14.66 | |||||
| 24 | W11613295 | Motor, Fan (Replaces: W10239053) |
|
Immediately | $ 143.68 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 26 | W11218259 | Harness, Unit With Power Cord (Replaces: W10234031) |
|
Immediately | $ 145.35 | ||||
| 27 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 28 | WPW10466675 | Compressor (also Order 876765 Tube Kit) (Replaces: W10391109) |
|
$ 834.53 | |||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 31 | W11556315 | Shroud (Replaces: W10189184) |
|
$ 83.64 | |||||
| 32 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 33 | W10619951 | Extension, Drain Tube (Replaces: W10588598) |
|
Immediately | $ 42.39 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 5.0 Oz. (r-134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 |
