SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Induction


07 - Body


09 - Top/drawer

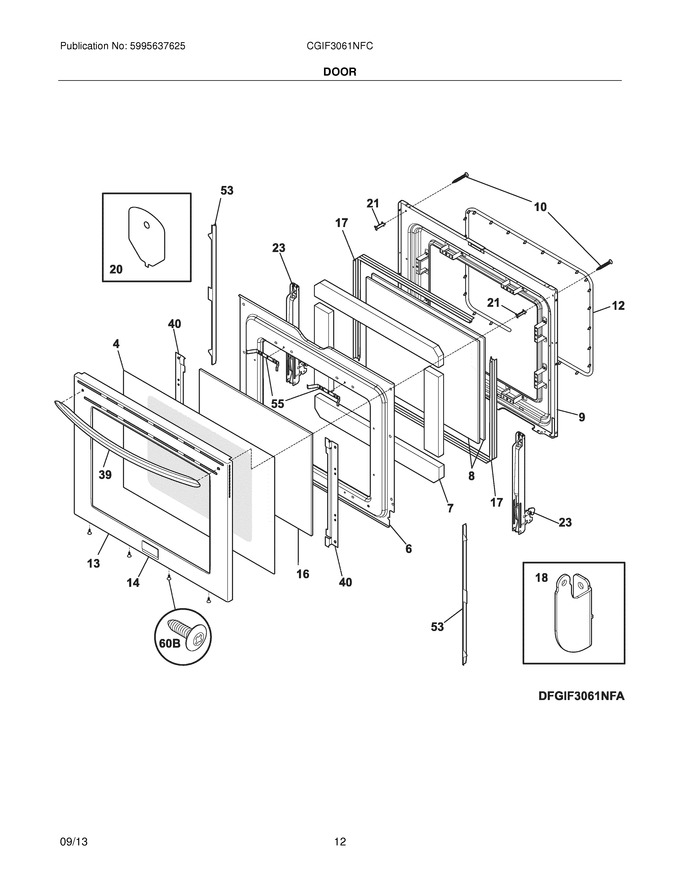

11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452720		Glass,oven Door ,black ,w/foil				$ 281.44
6	316503800		Shield,wool				$ 106.89
7	316513000		Insulation,oven Door				$ 90.56
8	316502500		Glass,door ,inner ,(2)			Immediately	$ 128.50
9	316503618		Liner,oven Door				$ 148.05
10	316433303		Screw,handle Mtg. ,10-24 X 1.75`` ,(2)   (Replaces: 316439500)			Immediately	$ 34.63
12	316405000		Seal,oven Door			Immediately	$ 199.08
13	316566315		Panel Assembly,door ,stainless ,outer ,w/badge				$ 166.53
14	316572700		Nameplate,white				$ 90.56
16	316502601		Glass,door ,airwash				$ 230.94
17	5304503172		Spacer,door Glass ,(2)   (Replaces: 316502101)				$ 28.65
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
20	316533801		Plate,distribution ,load			Immediately	$ 6.30
21	316284100		Spacer,door Handle ,(2)				$ 16.54
23	316575908		Hinge,oven Door ,teal				$ 161.60
39	316554010		Handle,door/drawer ,black   (Replaces: 316554008)			Immediately	$ 187.16
40	316530403		Bracket-airwash Glass Wash				$ 33.18
53	5304532042		Shield,door Filler ,black ,(2)   (Replaces: 316408201)				$ 28.65
55	316530800		Bracket,glass Spacer ,(4)				$ 23.15
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 15.75
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 30.55
NI	316483102		Label,anti-tip   (Replaces: 316483100)				$ 3.95
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55

    View Diagram in Separate Window       Print Part List
