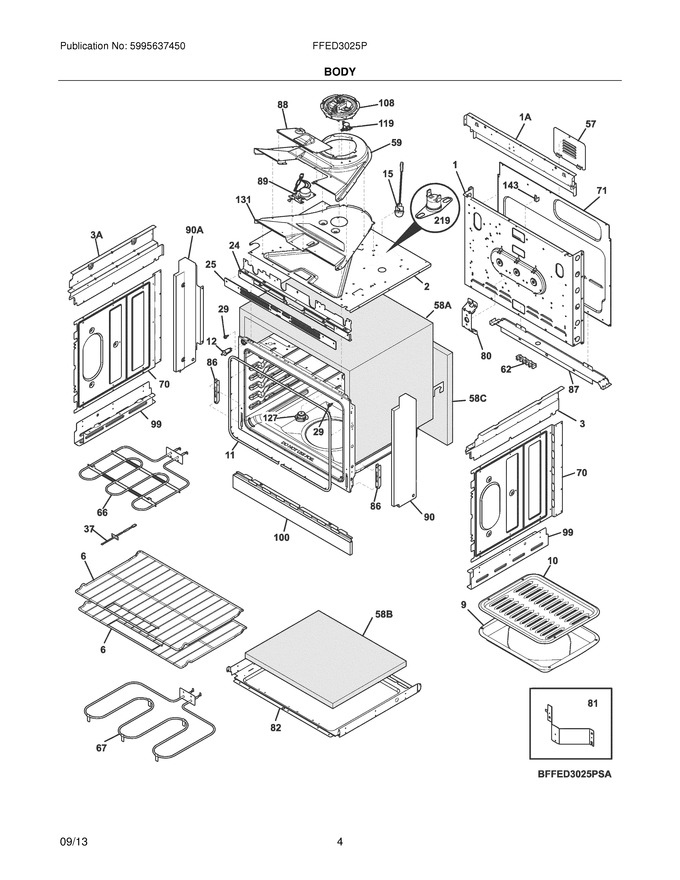

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017302		Panel,main Back		Appelez-nous	-
2	139028100		Shield,insulation ,top		Appelez-nous	-
3	318225230		Panel,bodyside ,upper Rh		Appelez-nous	-
6	139011800		Rack,oven ,w/handle				$ 128.00
9	318138801		Pan,broileroptional Access0ry		Appelez-nous	-
10	318126401		Insert,broiler Panoptional Access0ry		Appelez-nous	-
11	807545502		Seal,oven Door ,gray				$ 155.93
24	139074901		Frame,vent Trim ,black		Appelez-nous	-
25	139075001		Cover,vent Trim ,black				$ 67.24
29	316517600		Spacer,oven Door				$ 13.39
57	316283600		Cover,access				$ 13.89
59	139027600		Duct,cooling Fan ,upper				$ 95.29
62	5303935061		Terminal Block Kit		Appelez-nous	-
70	139000601		Shield,insulation ,sides ,(2)   (Replaces: 139000600)				$ 80.05
71	139014000		Shield,rear Wall ,lower		Appelez-nous	-
80	139021101		Bracket,support ,chassis/fan   (Replaces: 139021100)				$ 16.54
81	318054701		Plate,anti-tip				$ 18.43
82	139008200		Shield,insulation ,lower		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 23.59
87	139020100		Bracket,cable Mtg.		Appelez-nous	-
88	5304506964		Cover,latch Motor   (Replaces: 139027900)				$ 26.78
90	318296922		Panel,filler ,white ,rh		Appelez-nous	-
99	139086700		Strut,bottom Support ,(2)		Appelez-nous	-
100	318330001		Trim,door Opening ,white ,bottom				$ 232.84
127	5304538693		Tube Assembly,vent ,w/catalyst   (Replaces: 139042600)			Immediately	$ 11.14
131	139027700		Duct,cooling Fan ,lower				$ 81.11
143	318172904		Support,wire		Appelez-nous	-
1A	139004600		Panel,main Back ,upper				$ 75.13
3A	318225231		Panel,bodyside ,upper Lh		Appelez-nous	-
58A	139001700		Insulation,oven Wrapper ,top & Sides		Appelez-nous	-
58B	139020302		Insulation,oven Bottom		Appelez-nous	-
58C	139020201		Insulation,oven Back		Appelez-nous	-
90A	318296923		Panel,filler ,white ,lh		Appelez-nous	-
F108	318575612		Motor,cooling Fan			Immediately	$ 218.45
F119	807144901		Thermostat,cooling Fan ,110 Deg.				$ 64.88
F12	316445501		Switch,oven Light ,door Frame			Immediately	$ 100.01
F15	5304528790		Lamp Assembly,round ,halogen ,25w   (Replaces: 139009000)			Immediately	$ 22.84
F219	318005229		Switch,thermal Cutout			Immediately	$ 55.60
F37	5304504897		Sensor,oven Temp Probe   (Replaces: 318562500)			Immediately	$ 53.48
F66	5304521498		Element,broil ,6 Pass ,3400w   (Replaces: 139008900)			Immediately	$ 96.90
F67	139027501		Element,bake ,6 Pass ,2750w				$ 198.45
F89	5304528836		Motor,latch Assembly   (Replaces: 139078300)			Immediately	$ 84.82
FNI	808182601		Harness,wiring ,main				$ 220.56
FNI	318394445		Box & Wires Assy		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	5303289910		Screw,truss Sqdr ,8a X 1``				$ 6.30
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 12.60
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.37
NI	318579001		Bracket,wire				$ 11.08
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 30.55
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 15.75
