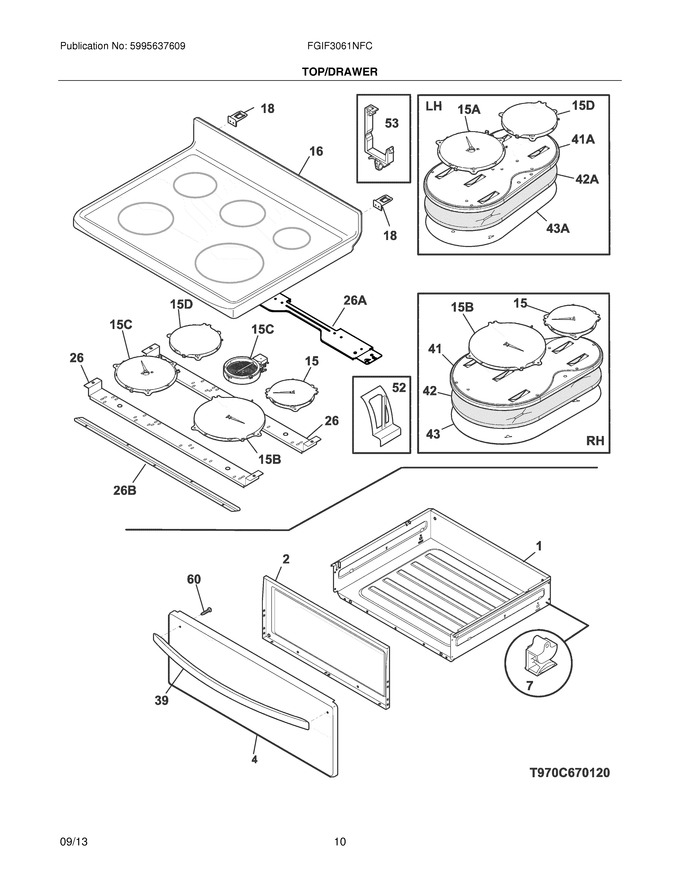

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 122.90
2	5304527989		Liner,drawer   (Replaces: 316403300)				$ 32.03
4	5304512039		Panel,drawer Front ,stainless   (Replaces: 316409421)				$ 150.55
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 10.95
16	316282980		Maintop Assembly,glass/smoothtop ,black				$ 616.66
18	316580800		Bracket-hinge,main Top			Immediately	$ 10.95
26	316427604		Channel,element Support ,(2)		Appelez-nous	-
39	316554010		Handle,door/drawer ,stainless   (Replaces: 316554005)			Immediately	$ 187.16
41	316306401		Panel,mounting ,induction ,rh				$ 155.93
42	316306800		Insulation,rh				$ 98.44
43	316306601		Shield,heat ,rh				$ 70.88
52	316461700		Clip,element Mtg				$ 13.39
53	316301200		Clip,wiring ,natural ,(2) ,induction		Appelez-nous	-
60	5303288572		Screw-handle Mtg		Appelez-nous	-
15No.	316305900		Element,induction Coil ,140mm ,lh Rear				$ 252.79
26A	316498200		Bracket-support,chassis ,aluminum				$ 58.14
26B	316214202		Bracket,chassis Support ,front				$ 25.41
41A	316306501		Panel,mounting ,induction ,lh		Appelez-nous	-
42A	316306900		Insulation,lh				$ 94.55
43A	316306701		Shield,heat ,lh				$ 81.11
F15A	316305800		Element,induction Coil ,180mm ,lh Front				$ 308.41
F15B	316305600		Element,induction Coil ,260mm ,rh Front				$ 368.81
F15C	316307501		Element,warmer Zone ,120mm				$ 191.36
F15D	316306000		Element,induction Coil ,120mm ,rh Rear				$ 265.43
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021132		Screw,8-18 X 11/16 ,black ,(3)				$ 14.32
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 15.75
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96
NI	5308014215		Screw`6-20 X 0.312				$ 2.53
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.37
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
