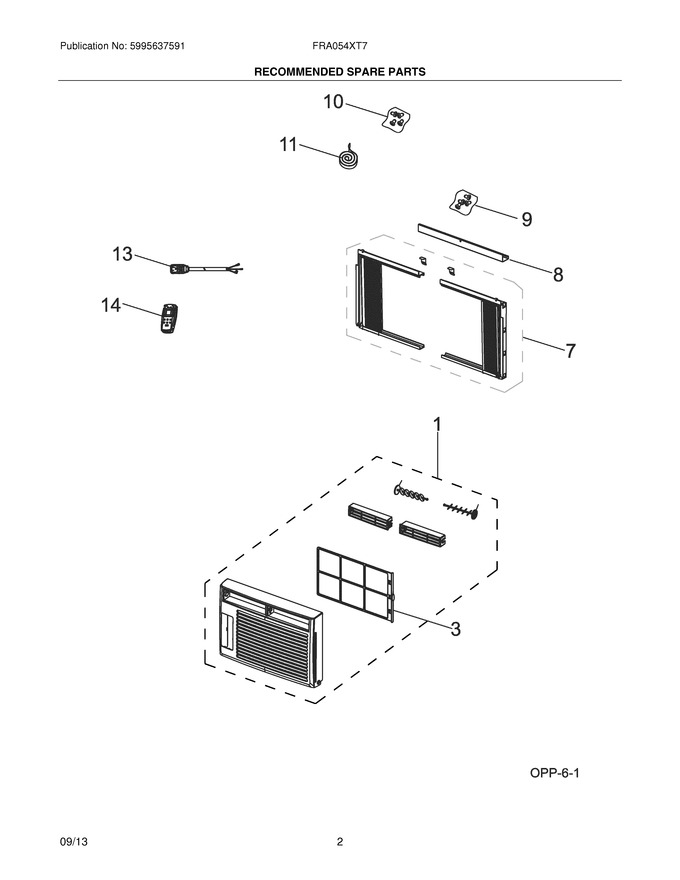

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5304492031 | Window Filler Kit,slider Panels |
|
$ 104.25 | |||||
| 6 | 5304492036 | Rail,shutter Track ,top |
|
- | |||||
| 7 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 8 | 5304491953 | Hardware,mounting ,screws/locks |
|
$ 19.52 | |||||
| 9 | 5304472193 | Seal Kit,foam ,sash Filler |
|
- | |||||
| F1 | 5304492034 | Front Assembly,complete Panel |
|
- | |||||
| F11 | 5304487579 | Power Cord,electric |
|
- | |||||
| F12 | 5304476904 | Remote Control,transmitter |
|
$ 104.94 | |||||
| F3 | 5304492035 | Filter,air |
|
- |
