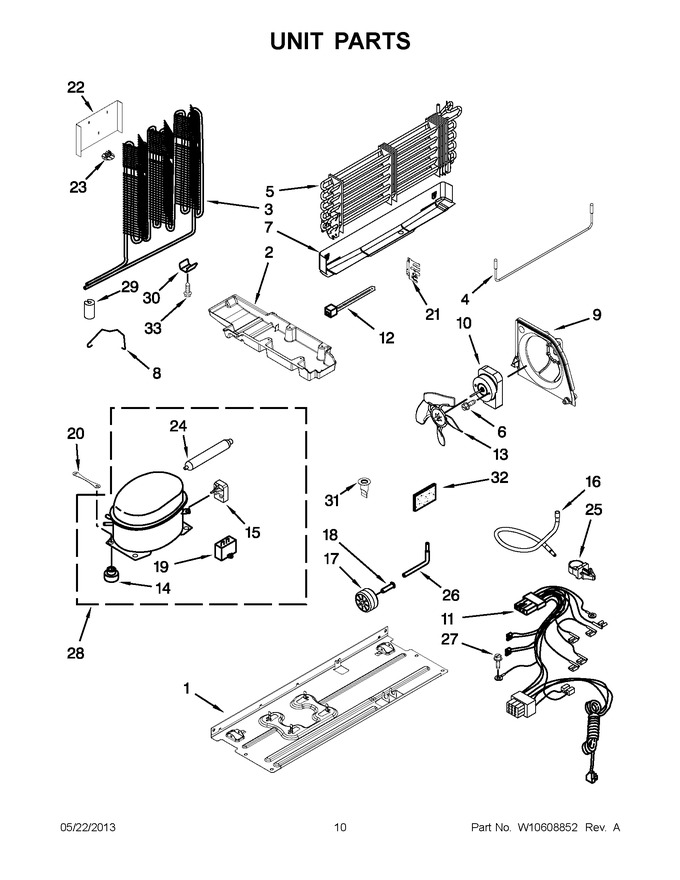

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10300116		Plate, Unit Mounting				$ 147.87
2	W10890667		Drain Tray   (Replaces: W10466213)				$ 136.76
3	WPW10342567		Condenser   (Replaces: W10342567)				$ 250.38
4	W10405108		Heater, Defrost		Appelez-nous	-
5	WPW10314205		Evaporator Assembly   (Replaces: W10314205)				$ 325.25
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	WPW10314195		Shield, Heat   (Replaces: W10314195)				$ 91.21
8	2302129		Bale Strap		Appelez-nous	-
9	WP2315541		Baffle, Air   (Replaces: 2315541)			Immediately	$ 79.19
10	WP2321271		Motor, Condenser   (Replaces: 2321271)				$ 292.92
11	W10402413		Wire Assembly, Unit		Appelez-nous	-
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.47
13	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 89.84
14	WPW10169124		Grommet   (Replaces: 10835903)				$ 6.80
15	WP2312007		Start Device   (Replaces: 2312007)				$ 170.72
16	W10466682		Tube, Suction				$ 39.90
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 17.21
19	2321245		Capacitor		Appelez-nous	-
20	W10236396		Strap, Compressor			Immediately	$ 18.73
21	W10314197		Bracket, Evaporator				$ 21.10
22	W10349514		Cover, Condenser Bottom				$ 74.16
23	W10296661		Clip, Bottom Cover				$ 16.00
24	W10843121		Drier   (Replaces: W10190413)			Immediately	$ 51.42
25	2219077		Clip, Harness				$ 57.82
26	2154109		Tube, Process				$ 68.63
27	WP489128		Screw   (Replaces: 488500)				$ 10.26
28	W10183407		Compressor   (Replaces: W10120455)				$ 392.05
29	W10852725		Grommet, Condenser   (Replaces: 2319835)				$ 7.28
30	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 17.44
31	W11190084		Drain Valve   (Replaces: W10519112)			Immediately	$ 59.00
32	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 13.29
33	W11544659		Screw   (Replaces: 8281232)				$ 12.92
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge 3.75 Oz. (r-134)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
