SELECT A DIAGRAM

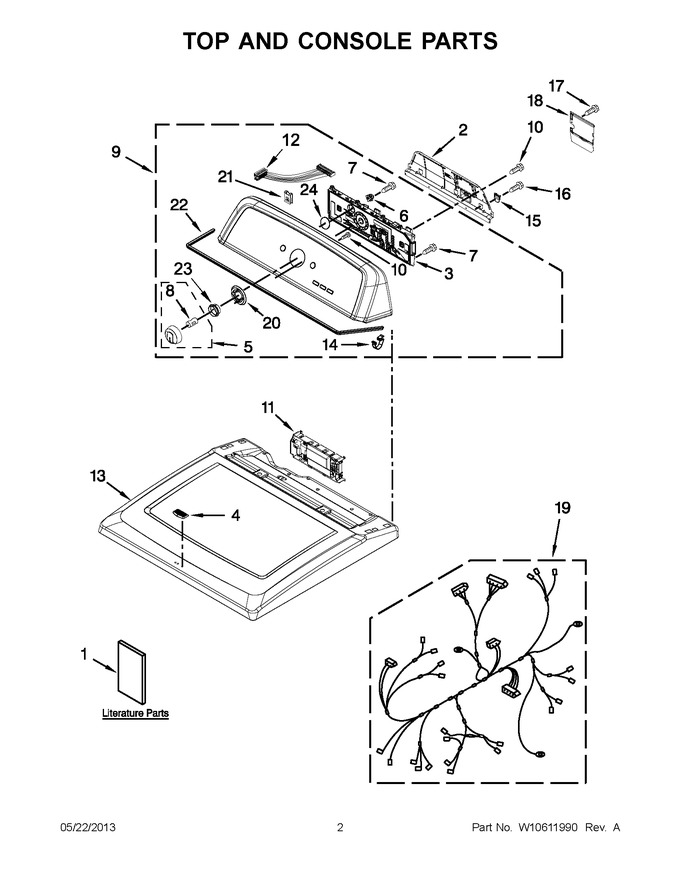

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10417013		Tech Sheet		Appelez-nous	-
1	W10329762		Guide, Use & Care		Appelez-nous	-
1	W10331570		Wiring Diagram		Appelez-nous	-
1	W10329764		Instructions, Installation		Appelez-nous	-
2	W10550615		Panel, Rear Console				$ 116.83
3	WPW10272635		User Interface Assembly   (Replaces: W10272635)				$ 313.89
4	W10492808		Badge				$ 59.82
5	WPW10251381		Assembly, Control Knob (chrome)   (Replaces: W10251381)				$ 58.63
6	W10274524		Tensioner, Fascia		Appelez-nous	-
7	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
8	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
9	W10329789		Console Assembly (complete)		Appelez-nous	-
10	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
11	WPW10317638		Control, Electronic   (Replaces: W10317638)				$ 344.65
12	W10285495		Cable, User Interface		Appelez-nous	-
13	WPW10268730		Top (white)   (Replaces: W10268730)				$ 345.86
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
15	W10279552		Plug, Upper Rear Panel		Appelez-nous	-
16	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
17	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 8.25
18	WPW10119283		Cover, Terminal Block   (Replaces: W10286180)				$ 134.77
19	W10331569		Harness, Electric		Appelez-nous	-
20	W10305134		Bezel, Cycle Trim				$ 26.37
21	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 8.13
22	W10280079		Seal, Console		Appelez-nous	-
23	W10326923		Spacer, Knob		Appelez-nous	-
24	W10323092		Seal, User Interface		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
