01 - Oven Parts

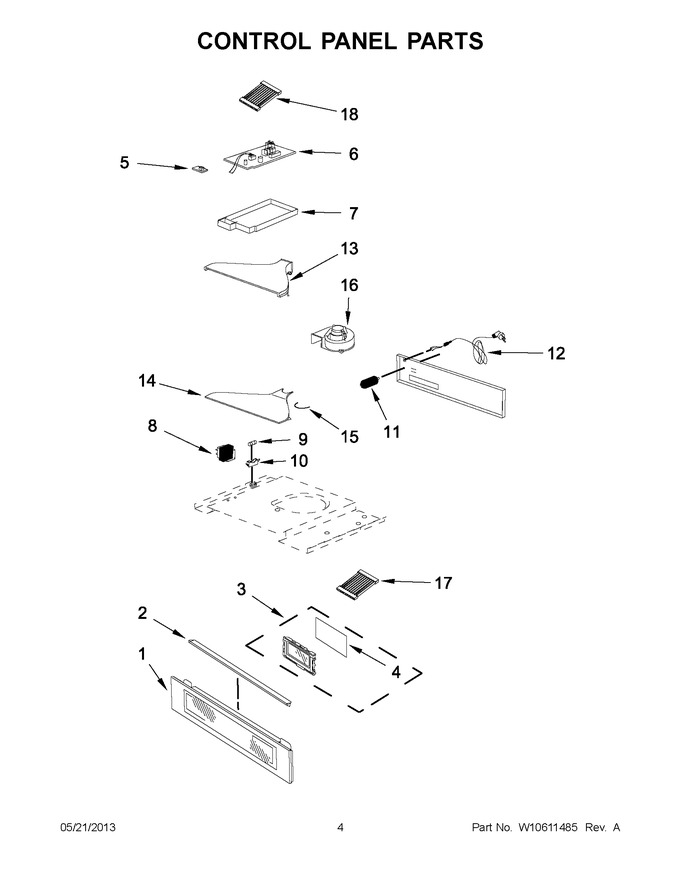

02 - Control Panel Parts
03 - Oven Door
04 - Internal Oven Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10586522 | Panel, Control With Membrane |
|
$ 835.86 | |||||
| 2 | W10517985 | Vent, Trim Control Panel |
|
$ 115.03 | |||||
| 3 | W10586523 | User Interface, Display |
|
- | |||||
| 4 | WPW10588968 | Gasket, User Interface (Replaces: W10588968) |
|
$ 9.33 | |||||
| 5 | W10587536 | Board, Water Level Sensor |
|
$ 47.84 | |||||
| 6 | W10587535 | Appliance Manager |
|
$ 276.91 | |||||
| 7 | W10586529 | Holder, Appliance Manager |
|
- | |||||
| 8 | W11238401 | Transformer (Replaces: 8205692) |
|
Immediately | $ 360.89 | ||||
| 9 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 18.28 | ||||
| 10 | W10245194 | Block, Fuse (Replaces: W10588576) |
|
$ 87.31 | |||||
| 11 | W10549523 | Filter, Line Noise |
|
Immediately | $ 155.60 | ||||
| 12 | W10587534 | Cord, Power |
|
- | |||||
| 13 | W10587870 | Top, Air Guide |
|
- | |||||
| 14 | W10587873 | Bottom, Air Guide |
|
- | |||||
| 15 | W10588568 | Gasket, Air Guide |
|
- | |||||
| 16 | W10586916 | Fan, Cooling |
|
$ 353.26 | |||||
| 17 | W10587552 | Harness, Display To Appliance Manager 5 Pin Ribbon Cable |
|
$ 45.91 | |||||
| 18 | W10587543 | Harness, Appliance Manager To Water Level Sensor Board, 3 Pin Ribbon Cable |
|
$ 22.09 |
