SELECT A DIAGRAM

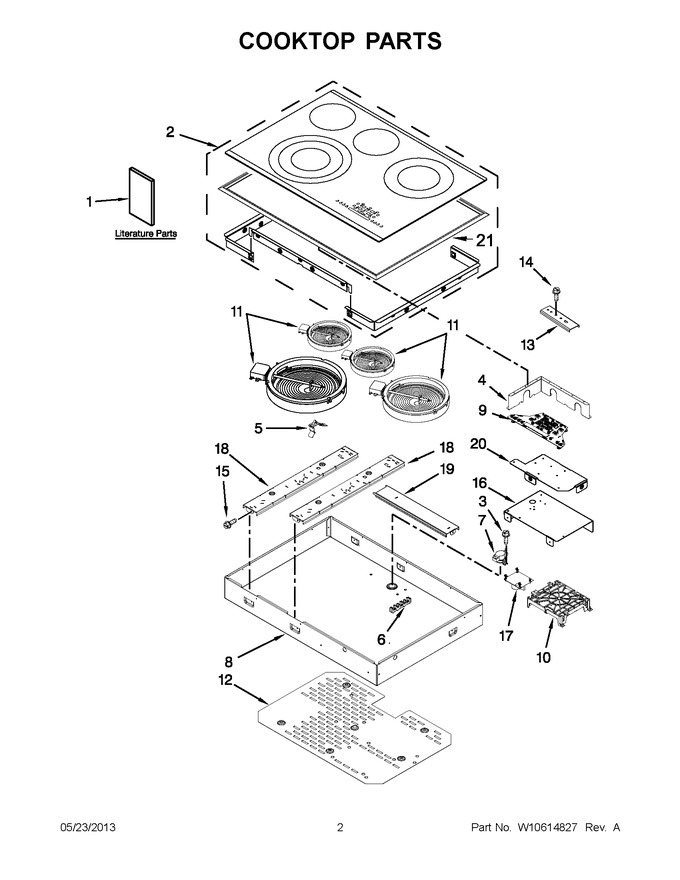

01 - Cooktop Parts


02 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10550660		Use & Care Guide		Appelez-nous	-
1	W10605744		Installation Instructions		Appelez-nous	-
1	W10550651		Tech Sheet (english)		Appelez-nous	-
1	W10550652		Tech Sheet (french)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	W10622120		Cooktop (stainless)   (Replaces: W10422112)				$ 892.52
2	W10622119		Cooktop (black)   (Replaces: W10570696)				$ 713.71
3	W10443110		Screw			Immediately	$ 15.25
4	W10548515		Shield, Heat		Appelez-nous	-
5	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
6	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
7	W10464566		Switch, Tod High Limit			Immediately	$ 195.77
8	N/P		Box, Burner (not Serviced)		Appelez-nous	-
9	W10491765		Interface, User				$ 413.63
10	WPW10491766		Manager, Appliance   (Replaces: W10491766)			Immediately	$ 480.19
11	W11171119		Element (1200w) (left Rear & Center)   (Replaces: 8273994)			Immediately	$ 182.23
11	WPW10298145		Element (4500w) (left Front)   (Replaces: W10298145)			Immediately	$ 346.26
11	W11517959		Element (1400w) (right Rear)   (Replaces: W10275048)			Immediately	$ 134.44
12	W10422067		Bottom, Heat Shield		Appelez-nous	-
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 92.86
14	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
16	W10340195		Box, Appliance Manager		Appelez-nous	-
17	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 317.35
18	W10457917		Rail, Vertical		Appelez-nous	-
19	W10340178		Rail, Horizontal		Appelez-nous	-
20	W10340196		Support, User Interface		Appelez-nous	-
21	W10422108		Assembly, Trim (for Stainless Models)				$ 367.03

    View Diagram in Separate Window       Print Part List
