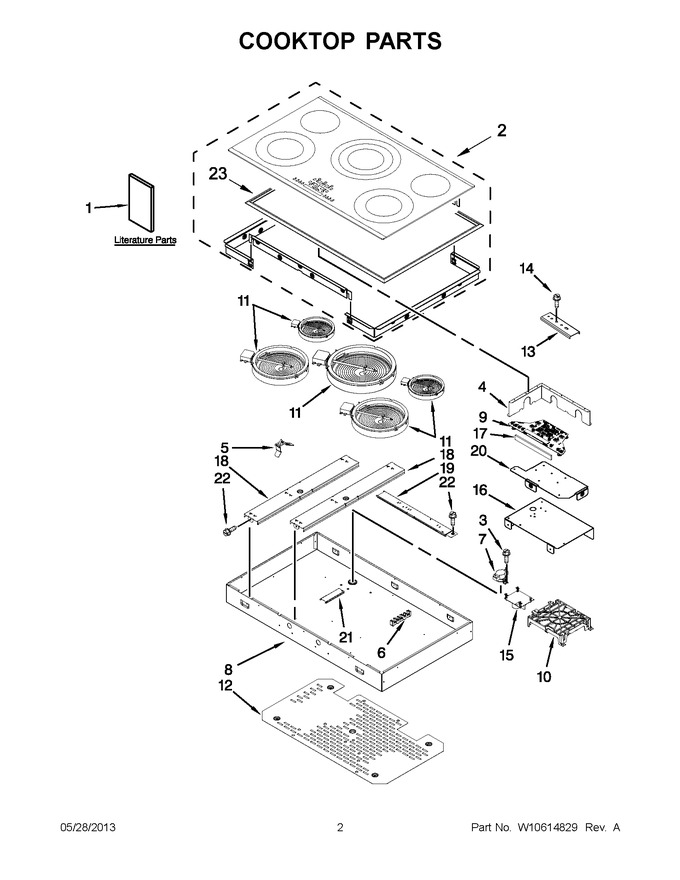

01 - Cooktop Parts
02 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10550652 | Tech Sheet (french) |
|
- | |||||
| 1 | W10605744 | Installation Instructions |
|
- | |||||
| 1 | W10550651 | Tech Sheet (english) |
|
- | |||||
| 1 | W10550660 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10622121 | Cooktop (black) (Replaces: W10570698) |
|
$ 973.23 | |||||
| 2 | W10622122 | Cooktop (stainless) (Replaces: W10422113) |
|
$ 999.23 | |||||
| 3 | W10443110 | Screw |
|
Immediately | $ 15.25 | ||||
| 4 | W10340230 | Shield, Heat |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 6 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 7 | W10464566 | Switch, Tod High Limit |
|
Immediately | $ 195.77 | ||||
| 8 | W10432543 | Box-burner |
|
- | |||||
| 9 | W10545377 | Interface, User |
|
$ 413.63 | |||||
| 10 | WPW10491766 | Manager, Appliance (Replaces: W10491766) |
|
Immediately | $ 480.19 | ||||
| 11 | W11171119 | Element 1200w (left Rear & Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 11 | WPW10270604 | Element (700w) (right Front) (Replaces: W10270604) |
|
Immediately | $ 223.48 | ||||
| 11 | WPW10275049 | Element (2500/1200w) (left Front) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 11 | WPW10298145 | Element (4500w) (center) (Replaces: W10298145) |
|
Immediately | $ 346.26 | ||||
| 12 | W10422069 | Bottom, Heat Shield |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 92.86 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 7.55 | |||||
| 15 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 16 | W10480492 | Box, Appliance Manager |
|
- | |||||
| 17 | W10464574 | Foam, User Interface |
|
$ 82.70 | |||||
| 18 | W10340200 | Rail, Vertical |
|
- | |||||
| 19 | W10340199 | Rail, Horizontal |
|
- | |||||
| 20 | W10340228 | Support, User Interface |
|
- | |||||
| 21 | W10340206 | Rail, Vertical Short |
|
- | |||||
| 22 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 23 | W10422109 | Assembly, Trim (for Stainless Models) |
|
Immediately | $ 380.17 |
