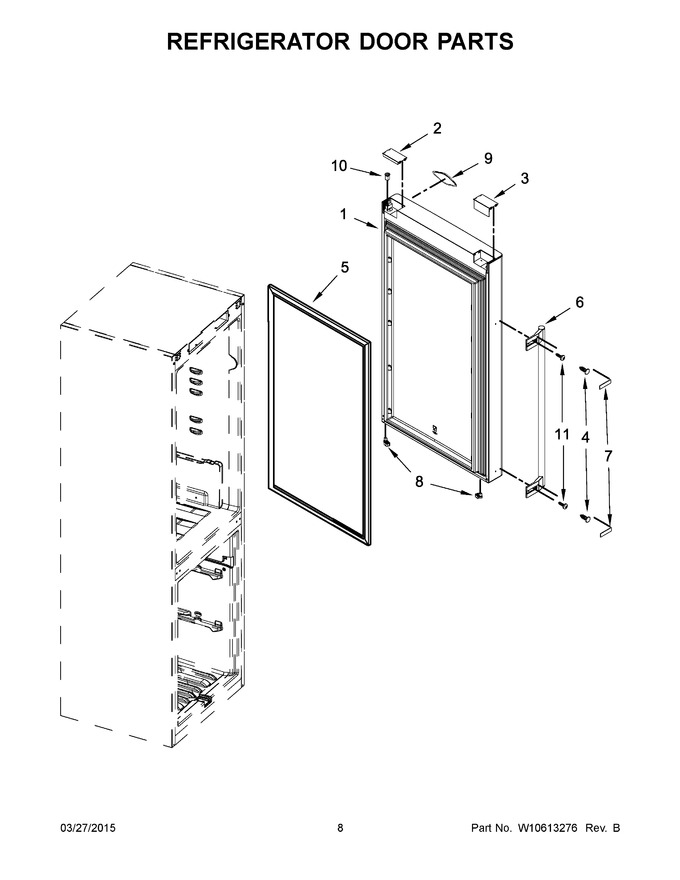

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10530515 | Door, Refrigerator (stainless) |
|
$ 471.41 | |||||
| 2 | W10476946 | Door Hinge Plug, Short |
|
- | |||||
| 3 | W10476949 | Door Hinge Plug, Long |
|
- | |||||
| 4 | W10529834 | Plug, Door Handle (grey) |
|
$ 13.91 | |||||
| 5 | W10585767 | Gasket, Door |
|
$ 76.87 | |||||
| 6 | W10509115 | Handle, Door (universal Silver) |
|
$ 89.61 | |||||
| 7 | W10438420 | Cover, Handle Screw (grey) |
|
$ 14.60 | |||||
| 8 | W10585759 | Stop, Door (left Hand) (grey) |
|
$ 36.73 | |||||
| 9 | WPW10170766 | Nameplate (badge) (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 10 | W10585708 | Sleeve, Hinge |
|
$ 16.39 | |||||
| 11 | W10675296 | Screw |
|
$ 14.37 | |||||
| 8A | W10585758 | Stop, Door (right Hand) (grey) |
|
$ 7.16 |
