SELECT A DIAGRAM
New Model Search:

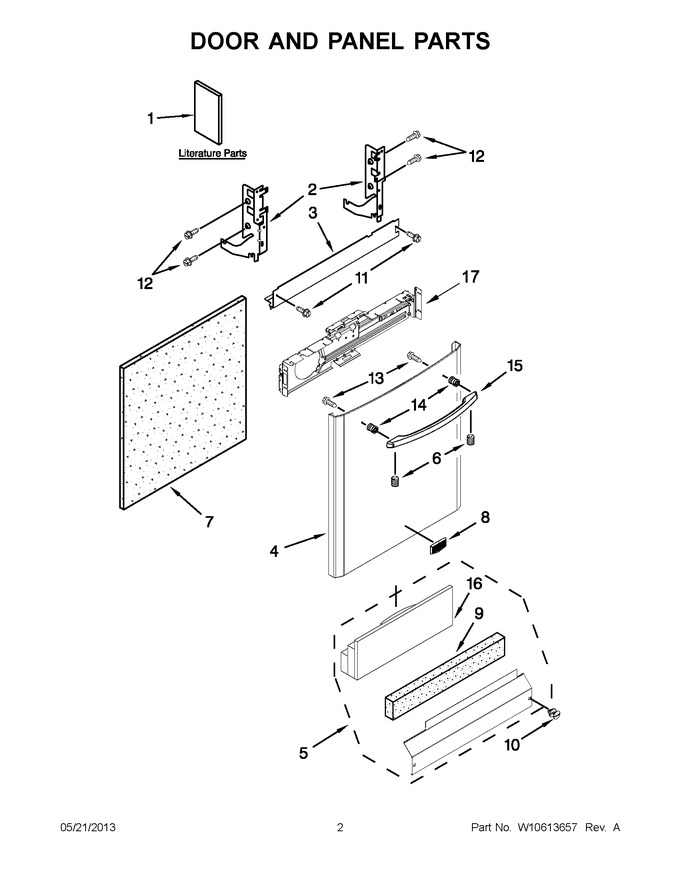

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10580509 | Tech Sheet, English |
|
- | |||||
| 1 | W10580510 | Tech Sheet, French |
|
- | |||||
| 1 | W10532762 | Installation Instructions |
|
- | |||||
| 1 | W10555178 | Energy Guide |
|
- | |||||
| 1 | W10596271 | Use & Care Guide |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | W10850371 | Barrier, Vapor Assembly (Replaces: W10321449) |
|
Immediately | $ 32.88 | ||||
| 4 | W10422054 | Panel Front (includes Items 8, 13 & 14) (stainless) |
|
$ 181.58 | |||||
| 4 | WPW10422053 | Panel Front (includes Items 8, 13 & 14) (white) (Replaces: W10422053) |
|
$ 390.23 | |||||
| 4 | WPW10422050 | Panel Front (includes Items 8, 13 & 14) (black) (Replaces: W10422050) |
|
$ 412.65 | |||||
| 5 | WPW10526115 | Access Panel (white) (Replaces: W10368716) |
|
$ 175.17 | |||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10368715) |
|
Immediately | $ 181.97 | ||||
| 6 | WP8534008 | Screw, Set (Replaces: 8534008) |
|
$ 9.37 | |||||
| 7 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 8 | W10288004 | Nameplate |
|
$ 52.11 | |||||
| 9 | W10831329 | Insulation, Toe Panel (Replaces: W10385107) |
|
Immediately | $ 43.30 | ||||
| 10 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 30.39 | ||||
| 10 | WPW10503549 | Fastener (white) (Replaces: W10503549) |
|
Immediately | $ 7.77 | ||||
| 11 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 12 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 13 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 14 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 8.87 | ||||
| 15 | WPW10324630 | Handle (black) (Replaces: W10461636) |
|
$ 196.53 | |||||
| 15 | W10324627 | Handle (white) (Replaces: W10461635) |
|
$ 182.84 | |||||
| 15 | W10324628 | Handle (stainless) |
|
$ 98.96 | |||||
| 16 | W10831329 | Insulation, Three Layer (Replaces: W10350437) |
|
Immediately | $ 43.30 | ||||
| 17 | WPW10350242 | Bracket, Control (Replaces: W10350242) |
|
$ 88.32 |
