Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10580510 Tech Sheet, French Appelez-nous -
1 W10435039 Instructions, Installation Appelez-nous -
1 W10490736 Energy Guide Appelez-nous -
1 W10596270 Use & Care Guide Appelez-nous -
1 W10580509 Tech Sheet, English Appelez-nous -
2 W11613572 Arm, Hinge (right Hand)   (Replaces: W10274921) In-Stock Immediately $ 83.93

2 W11806566 Arm, Hinge (left Hand)   (Replaces: W10274922) In-Stock Immediately $ 71.77

3 W10850371 Stiffener, Door   (Replaces: W10195120) In-Stock Immediately $ 32.88

4 WPW10438259 Panel Front (also Includes Items 11 & 12) (stainless)   (Replaces: W10438259) Special Order $ 392.29

4 W10438258 Panel Front (also Includes Items 11& 12) (biscuit/bisque) Appelez-nous -
4 WPW10438257 Panel Front Also Includes Items 11 & 12) (white)   (Replaces: W10438257) Special Order $ 384.87

4 WPW10438256 Panel Front (also Includes Items 11 & 12) (black)   (Replaces: W10438256) Special Order $ 380.61

5 W10827631 Access Panel (black)   (Replaces: W10369024) In-Stock Immediately $ 195.64

5 W10827632 Access Panel (white)   (Replaces: W10369026) In-Stock Immediately $ 163.70

5 W10369028 Access Panel (biscuit/bisque) Special Order $ 170.73

6 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

7 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

8 WPW10503550 Fastener (biscuit/bisque)   (Replaces: W10503550) Special Order $ 29.00

8 WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

8 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

9 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93

10 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

11 W10343320 Pocket, Panel (white) Special Order $ 144.76

11 W10343322 Pocket, Panel (black) Special Order $ 149.59

11 W10571386 Pocket, Panel (stainless) Special Order $ 145.35

11 W10343323 Pocket, Panel (biscuit/bisque) Special Order $ 144.82

12 W10288004 Nameplate Special Order $ 52.11

13 W10831329 Insulation Toe Panel   (Replaces: W10073540) In-Stock Immediately $ 43.30


    View Diagram in Separate Window     Print Icon   Print Part List

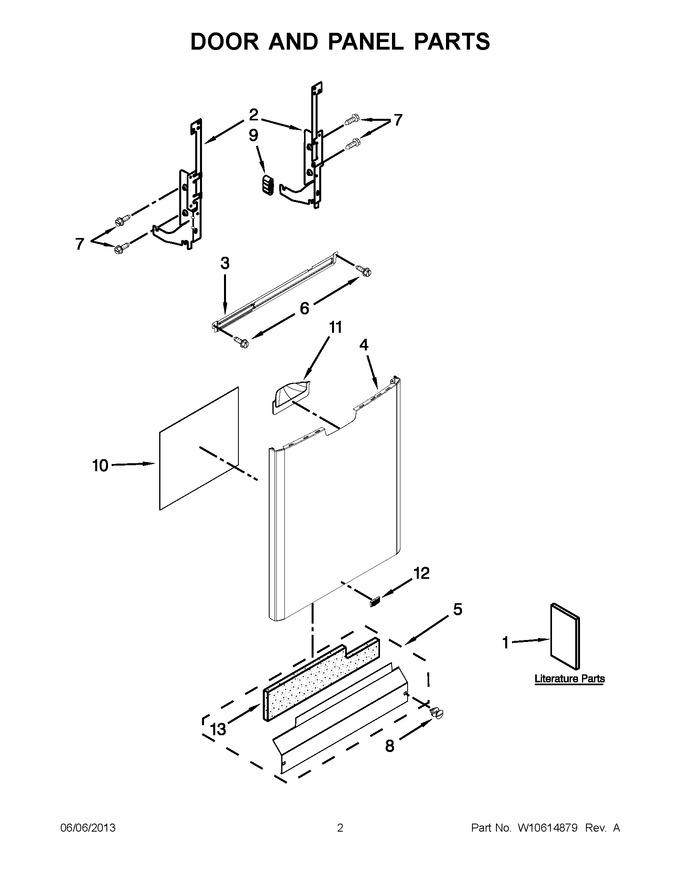

Diagram for MDBH949PAM3
