SELECT A DIAGRAM

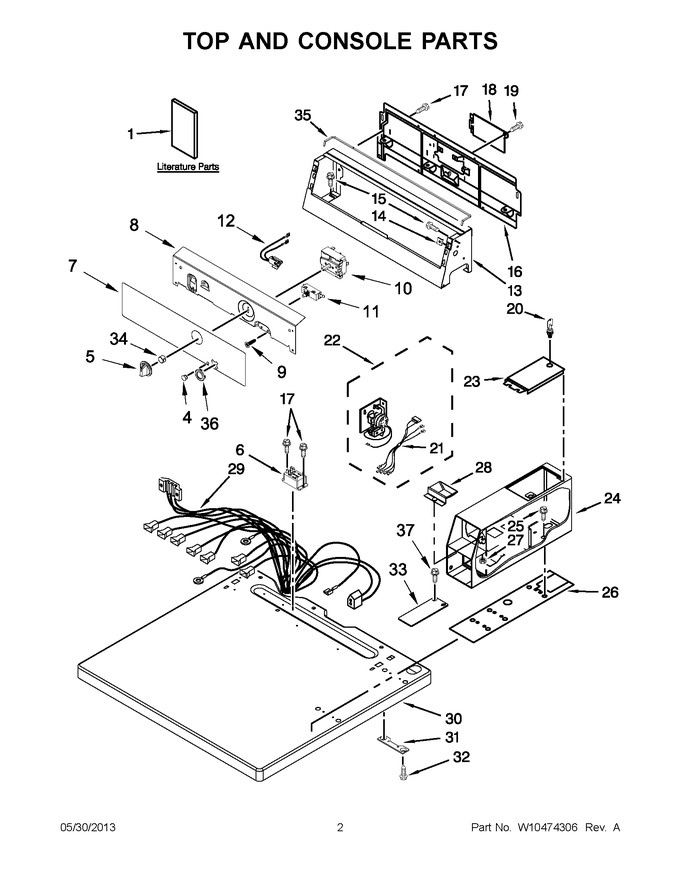

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - W10096909 Burner Assembly Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10474275 | Installation Instructions |
|
- | |||||
| 1 | W10396190 | Wiring Diagram |
|
- | |||||
| 4 | WPW10133502 | Indicator Lights Assembly (Replaces: W10133502) |
|
$ 13.51 | |||||
| 5 | W11643382 | Knob (Replaces: W10133507) |
|
Immediately | $ 26.27 | ||||
| 6 | WP1188043 | Relay, Heater 230v (Replaces: 1188043) |
|
$ 115.64 | |||||
| 7 | W10506034 | Fascia (Replaces: W10506024) |
|
- | |||||
| 8 | W10461070 | Bracket Control |
|
$ 148.97 | |||||
| 9 | W10139100 | Screw |
|
$ 13.01 | |||||
| 10 | W10327100 | Switch, Cycle Selection |
|
$ 215.07 | |||||
| 11 | W11097274 | Switch, Pts (Replaces: W10488054) |
|
$ 70.83 | |||||
| 12 | W10139459 | Lamp-indicator |
|
- | |||||
| 13 | W10461094 | Console |
|
$ 186.63 | |||||
| 14 | WPW10131123 | Nut, ``u`` (Replaces: W10131123) |
|
$ 8.10 | |||||
| 15 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 8.03 | |||||
| 16 | W10135273 | Panel, Rear (upper) |
|
- | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 18 | W10601020 | Cover, Terminal Block (Replaces: W10096918) |
|
- | |||||
| 19 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 20 | W11315637 | Assembly, Cam & Security Lock (Replaces: 8316526) |
|
Immediately | $ 40.47 | ||||
| 21 | W10111030 | Harness, Timer |
|
- | |||||
| 22 | WPW10135271 | Timer & Harness Assembly 50 Hz. (Replaces: W10135271) |
|
$ 379.97 | |||||
| 23 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 111.17 | |||||
| 24 | WPW10529172 | Meter Case (Replaces: W10529172) |
|
$ 345.34 | |||||
| 25 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 7.48 | |||||
| 26 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 32.66 | |||||
| 27 | W10139060 | Nut, 1/4-20 |
|
- | |||||
| 28 | W10133509 | Funnel, Coin |
|
$ 86.91 | |||||
| 29 | W10386331 | Harness, Main |
|
- | |||||
| 30 | WPW10136707 | Top (white) (Replaces: W10136707) |
|
$ 373.98 | |||||
| 31 | 3347825 | Plate, Mounting |
|
- | |||||
| 32 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 33 | WPW10153513 | Extension (Replaces: W10153513) |
|
$ 86.99 | |||||
| 34 | W10140928 | Clip, Knob |
|
$ 5.22 | |||||
| 35 | WPW10157932 | Seal, Foam (Replaces: W10157932) |
|
Immediately | $ 8.45 | ||||
| 36 | W10510149 | Bezel - Pts |
|
Immediately | $ 28.63 | ||||
| 37 | WP356418 | Screw (Replaces: 96435) |
|
$ 9.26 |
