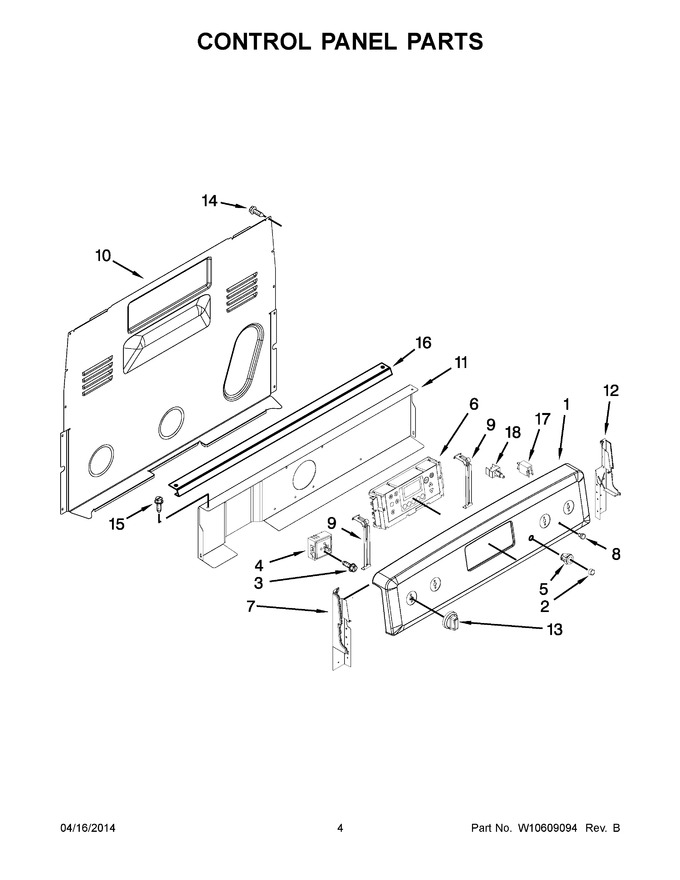

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10604972 | Panel, Backguard (white) |
|
- | |||||
| 1 | W10604973 | Panel, Backguard (black) |
|
- | |||||
| 1 | W10604974 | Panel, Backguard (stainless) |
|
- | |||||
| 2 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 2 | 9758491 | Button, Keep Warm (black) |
|
$ 19.74 | |||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10434452 | Switch, Infinite (left Front & Right Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | W10217758 | Bezel, Keep Warm (black) |
|
$ 28.65 | |||||
| 5 | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 5 | W10217760 | Bezel, Keep Warm (white) |
|
$ 25.91 | |||||
| 6 | W10477068 | Control Board (white) |
|
- | |||||
| 6 | WPW10655837 | Control Board (stainless) (Replaces: W10477070) |
|
$ 501.11 | |||||
| 6 | WPW10655832 | Control Board (black) (Replaces: W10477069) |
|
$ 277.33 | |||||
| 7 | W11219365 | End Cap (white (left Hand)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 7 | W11219664 | End Cap (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 12 | W11219370 | End Cap (white (right Hand)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 12 | W11219665 | End Cap (black (right Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 13 | W10370184 | Knob (white) |
|
$ 83.65 | |||||
| 13 | WPW10370186 | Knob (stainless) (Replaces: W10370186) |
|
Immediately | $ 22.45 | ||||
| 13 | W10370185 | Knob (black) |
|
$ 22.80 | |||||
| 14 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 16 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 17 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 18 | WP8272820 | Switch, Warm Zone (Replaces: 8272820) |
|
$ 178.91 |
