SELECT A DIAGRAM

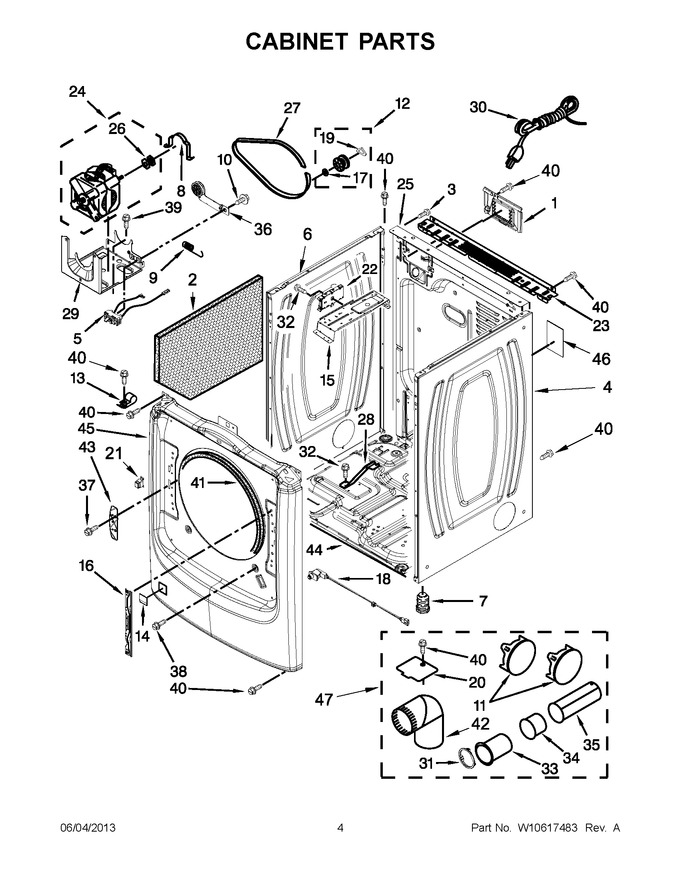

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
2	W10123956		Panel, Dampening		Appelez-nous	-
3	W10850756		Screw   (Replaces: 8533974)				$ 8.20
4	W10469591		Panel, Side (right) (granite)				$ 147.47
4	W11310043		Panel, Side (right) (white)   (Replaces: W10469589)				$ 308.13
5	W10847984		Switch, Broken Belt   (Replaces: W10411936)			Immediately	$ 26.90
6	W11233548		Panel, Side (left) (white)   (Replaces: W10468495)				$ 261.33
6	WPW10468501		Panel, Side (left) (granite)   (Replaces: W10468501)				$ 350.83
7	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
8	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
9	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
10	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
11	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 75.58
12	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
13	3978776		Bracket, Gas Pipe		Appelez-nous	-
14	W10301055		Plug, Front Panel (cosmetallic)				$ 13.51
14	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 16.50
15	W10259611		Bracket, Control				$ 127.30
16	W10315109		Bracket, Door Hinge		Appelez-nous	-
17	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
18	W11427601		Door Switch, Snap In   (Replaces: W10569114)				$ 76.53
19	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
20	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
21	W11240283		Assembly, Spring Catch   (Replaces: W10208401)			Immediately	$ 28.04
22	WPW10542001		Board, Control   (Replaces: W10542001)			Immediately	$ 372.76
23	WPW10208382		Bracket, Rear   (Replaces: W10208382)				$ 46.18
24	WPW10508324		Assembly, Motor   (Replaces: W10396038)			Immediately	$ 342.91
25	W10487430		Panel, Rear			Immediately	$ 357.12
26	W10837625		Pulley, Motor   (Replaces: W10460106)			Immediately	$ 12.77
27	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 105.32
28	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
29	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 94.84
30	W11222083		Cord, Power   (Replaces: W10440461)				$ 126.62
31	WPW10344699		Collar-duct   (Replaces: W10344699)				$ 85.70
32	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
33	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
34	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 82.90
35	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
36	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
37	W11661566		Screw   (Replaces: W10288126)				$ 14.73
38	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
39	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
40	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	WPW10416072		Elbow   (Replaces: W10416072)				$ 28.16
43	WPW10208250		Strike, Door   (Replaces: W10208250)				$ 43.86
44	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 365.36
45	W10363955		Panel, Front (granite)				$ 187.74
45	W10363954		Panel, Front (white)				$ 180.67
46	W11409002		Pad, Foam   (Replaces: W10504381)				$ 23.76
47	W10323246		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Venting			Immediately	$ 89.96
NI	49621		Foot, Optional (extended Lengthpackage Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
