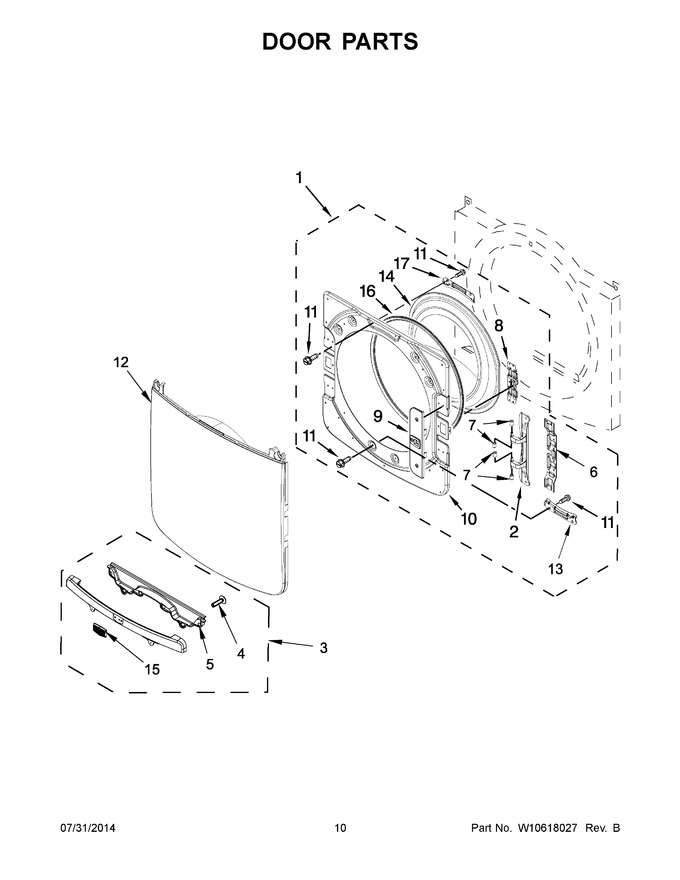

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11465962		Assembly, Inner Door   (Replaces: W10272387)				$ 285.95
2	WPW10208415		Hinge, Base   (Replaces: W10208415)			Immediately	$ 133.32
3	W10683483		Handle, Door   (Replaces: W10466618)				$ 94.50
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
5	8572266		Bumper, Door			Immediately	$ 11.73
6	WPW10208419		Plate, Hinge Retainer   (Replaces: W10208419)				$ 85.94
7	WPW10208398		Cap, Hinge   (Replaces: W10208398)			Immediately	$ 21.47
8	WPW10208254		Assembly, Door Catch   (Replaces: W10208254)				$ 85.34
9	W10272404		Cover, Door Catch				$ 68.03
10	W11491634		Door, Inner   (Replaces: W10285652)				$ 252.96
11	W11661566		Screw   (Replaces: W10288126)				$ 14.73
12	W10424248		Assembly, Outer Door				$ 229.99
13	W10208252		Bracket, Glass		Appelez-nous	-
14	W11310036		Glass, Door   (Replaces: W10208417)				$ 224.82
15	W10492808		Badge, Maytag   (Replaces: W10424964)				$ 59.82
16	W11310035		Seal, Glass   (Replaces: W10329710)			Immediately	$ 93.76

    View Diagram in Separate Window       Print Part List
