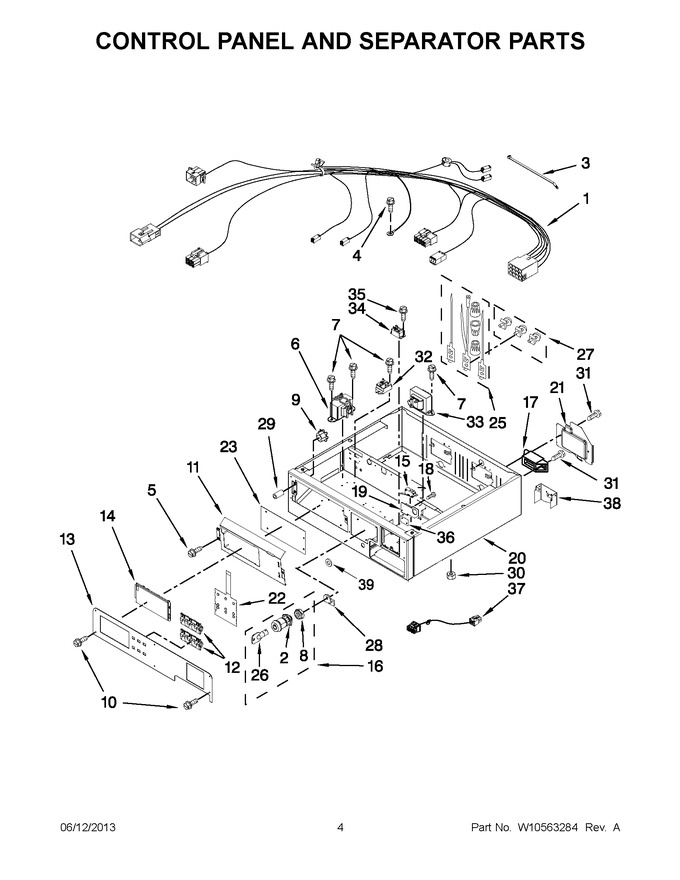

01 - Lower Cabinet And Front Panel Parts


02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11352539		Harness, Collar   (Replaces: W10169694)		Appelez-nous	-
2	W11395752		Nut, Hex   (Replaces: W10139762)				$ 13.04
3	WPW10155270		Tie, Cable   (Replaces: 8529895)				$ 6.17
4	W10850756		Screw   (Replaces: 8533974)				$ 7.76
5	W10756178		Screw   (Replaces: W10140652)				$ 5.99
6	W10237957		Transformer 120 - 22.5 Vac		Appelez-nous	-
7	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.82
8	WPW10133264		Nut, Hex   (Replaces: W10177242)				$ 139.02
9	WPW10139046		Nut   (Replaces: W10139046)				$ 8.79
10	WPW10131119		Screw   (Replaces: W10386302)				$ 6.95
11	W10163677		Plate, Control Mounting		Appelez-nous	-
12	WPW10424308		Button, Push   (Replaces: W10131113)			Immediately	$ 20.42
13	W10135193		Facia Console		Appelez-nous	-
14	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 70.41
15	W10133281		Switch, Service Access		Appelez-nous	-
16	WPW10133264		Assembly, Lock Access Door   (Replaces: W10133264)				$ 139.02
17	W11690172		Terminal-block   (Replaces: W10237321)				$ 378.76
18	3400408		Screw		Appelez-nous	-
19	W10160652		Bracket-switch		Appelez-nous	-
20	W10165714		Collar		Appelez-nous	-
21	W10684155		Cover, Terminal Block   (Replaces: W10196677)		Appelez-nous	-
22	WPW10133278		Membrane Switch Assembly   (Replaces: W10133278)				$ 116.37
23	WPW10167611		Control Board   (Replaces: W10167611)				$ 418.67
25	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
26	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 22.10
27	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
28	W10233256		Cam, Locking Iec				$ 73.54
29	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
30	WPW10080190		Nut, Hex (left Hand Thread)   (Replaces: W10001120)			Immediately	$ 8.49
31	W11676450		Screw   (Replaces: 3400000)				$ 14.06
32	W10133335		Relay, Motor				$ 40.14
33	W10237958		Transformer, 240 - 120 Vac		Appelez-nous	-
34	W11553481		Relay, Heater   (Replaces: W10258680)		Appelez-nous	-
35	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
36	W10151156		Shield, Sensor Switch		Appelez-nous	-
37	W10111027		Jumper, Transformer				$ 45.81
38	W10192090		Bracket, Terminal Block				$ 103.23
39	2006252		Washer, Nylon		Appelez-nous	-
