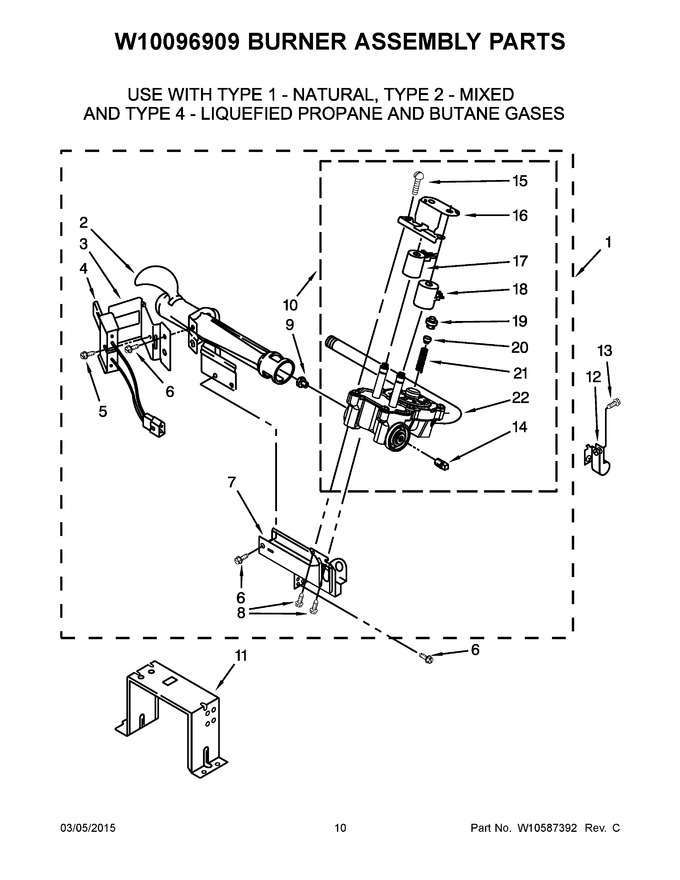

06 - W10096909 Burner Assembly Parts


07 - Dryer Door Parts


08 - Washer Door Parts


09 - Washer Cabinet Parts


10 - Dispenser Parts


11 - Tub And Basket Parts


12 - Pump And Motor Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096909		Burner Assembly 50 Hz. (type 1 And 2)		Appelez-nous	-
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: 3393909)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	3389871		Base, Burner				$ 83.25
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	234660		Orifice, Burner (type 1 (natural))				$ 4.91
10	WP8281918		Valve Gas 50 Hz. (complete)   (Replaces: 8281918)				$ 242.35
11	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
12	3978776		Bracket, Gas Pipe		Appelez-nous	-
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
14	W10295523		Pipe Plug		Appelez-nous	-
15	694421		Screw, Coil		Appelez-nous	-
16	694538		Bracket, Coil				$ 72.05
17	WP307930		Coil, 50 Hz.   (Replaces: 695297)				$ 111.00
18	WPY307931		Coil, 50 Hz. (split)   (Replaces: 695298)				$ 121.46
19	WP694424		Leak, Limiter   (Replaces: 694424)				$ 36.30
20	WP694423		Screw, Regulator Adjustment   (Replaces: 694423)				$ 7.30
21	WP694422		Spring, Regulator   (Replaces: 694422)				$ 25.48
22	W10097610		Pipe, Gas Supply		Appelez-nous	-
9A	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 36.59
NI	W10571757		Conversion Kit, Lp   (Replaces: W10233219)				$ 37.80
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
