SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigertor Door

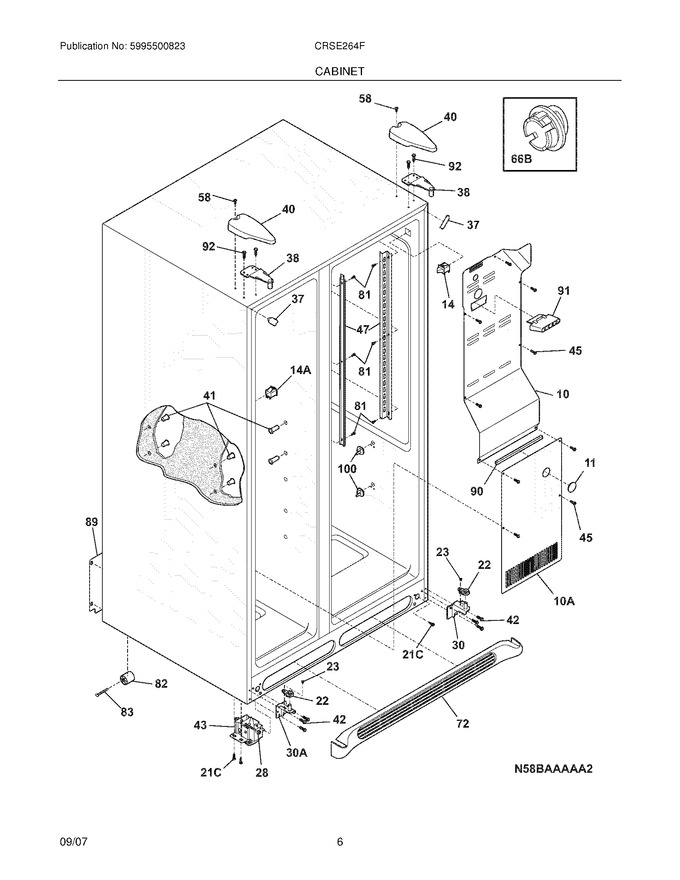

07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435912		Cover-air Duct				$ 136.92
11	5303208309		Plug-hole, Factory Test				$ 50.56
14	240505801		Switch-light/lamp				$ 74.03
22	240457701		Plate-door Closer			Immediately	$ 63.00
23	240402702		Screw-no.10-32 X 1/4 Flat Hd				$ 23.57
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 241708801)			Immediately	$ 34.81
30	241603703		Bracket-lower Hinge, Ref		Appelez-nous	-
37	242161201		Trim-cabinet Corner,white ,(2)   (Replaces: 240337608)				$ 3.26
38	240327207		Bracket-upper Hinge			Immediately	$ 63.89
40	240327005		Cover-upper Hinge,white				$ 67.81
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 70.78
42	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8			Immediately	$ 15.75
43	5304499445		Roller Assy,adjustable ,front ,(2)   (Replaces: 241709301)			Immediately	$ 34.81
45	241500303		Screw,hex Washer Head ,8-18ab X 0.500			Immediately	$ 5.06
47	218659500		Channel-shelf Mtg,side ,(2)				$ 121.38
58	218781101		Screw,pan Head ,8-18 X 0.625				$ 17.33
72	240324409		Grille/kickplate,white				$ 70.78
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 57.30
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin			Immediately	$ 39.27
89	5304520905		Cover-access,w/label   (Replaces: 241733902)			Immediately	$ 82.25
90	218249808		Seal-coil Cover		Appelez-nous	-
91	240380101		Duct-ice Maker				$ 83.42
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 14.96
100	241993101		Support,crisper Cover ,front ,(4)   (Replaces: 240423701)			Immediately	$ 6.24
100	241993001		Support,crisper Cover ,rear ,(4)   (Replaces: 240350802)			Immediately	$ 21.37
10A	241719711		Cover-evap Coil,lower				$ 117.55
14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 25.83
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
30A	241603704		Bracket-lower Hinge		Appelez-nous	-
66B	240374301		Diffuser-air				$ 77.26
66B	240518802		Pin-push,push-in ,plastic				$ 18.11
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 20.22
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 21.26
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 20.22
NI	5303321319		Paint,touch-up ,white			Immediately	$ 14.96

    View Diagram in Separate Window       Print Part List
