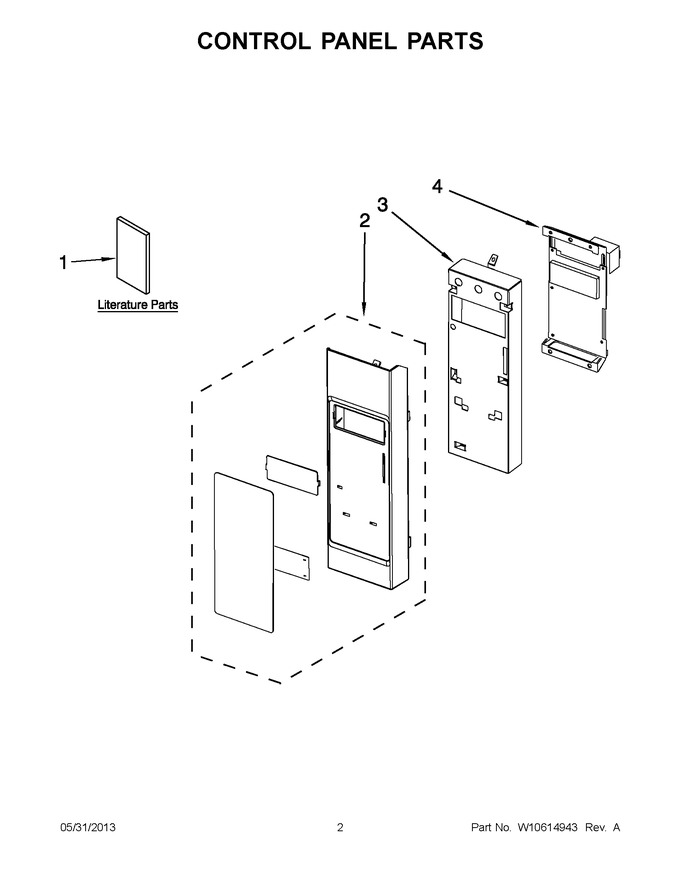

01 - Control Panel Parts
02 - Door Parts
03 - Interior And Ventilation Parts
04 - Air Flow Parts
05 - Turntable Parts
06 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10249248 | Use & Care Guide |
|
- | |||||
| 1 | W10443801 | Tech Sheet |
|
- | |||||
| 1 | W10197630 | Cook Guide Label |
|
- | |||||
| 1 | W10344702 | Installation Instructions |
|
- | |||||
| 2 | W10315761 | Assembly, Control Panel (includes Lens And Membrane Switch) (white) |
|
- | |||||
| 2 | W10315760 | Assembly, Control Panel (includes Lens And Membrane Switch) (black) |
|
- | |||||
| 3 | W10364232 | Bracket, Control |
|
- | |||||
| 4 | W10508568 | Microcomputer |
|
- |
