01 - Cover Sheet
02 - Top And Cabinet Parts

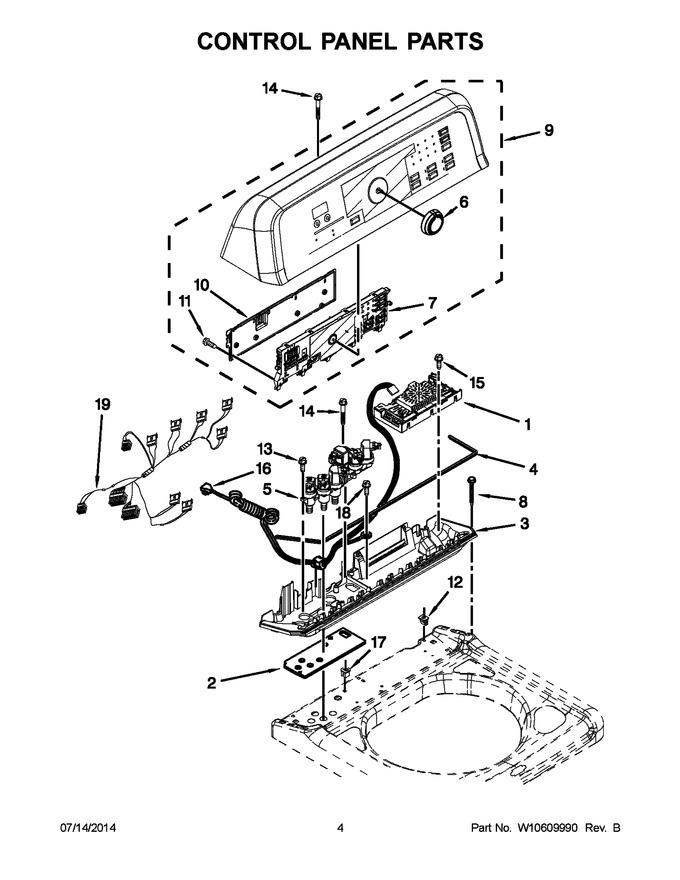

03 - Control Panel Parts
04 - Pump Parts
05 - Motor, Basket And Tub Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10522399 | Control Unit Assembly, Machine & Motor |
|
- | |||||
| 2 | W10141695 | Gasket, Valve Tray |
|
$ 36.82 | |||||
| 3 | WPW10356745 | Tray Assembly (white) (Replaces: W10356745) |
|
$ 182.81 | |||||
| 4 | W10141693 | Gasket, Console/tray |
|
- | |||||
| 5 | W10853723 | Valve, Log (Replaces: W10342320) |
|
Immediately | $ 142.62 | ||||
| 6 | WPW10571098 | Assembly, Control Knob (grey) (Replaces: W10571098) |
|
$ 61.93 | |||||
| 7 | W10536856 | User Interface |
|
$ 276.93 | |||||
| 8 | W10004990 | Screw |
|
- | |||||
| 9 | W10521059 | Console (white) |
|
$ 396.94 | |||||
| 10 | W10051124 | Cover, Ui Rear |
|
$ 263.67 | |||||
| 11 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 12 | W10022060 | Nut, Push In |
|
- | |||||
| 13 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 14 | 8565324 | Screw |
|
$ 14.05 | |||||
| 15 | WPW10273971 | Screw (Replaces: W10133427) |
|
Immediately | $ 7.55 | ||||
| 16 | WPW10547372 | Cord, Power (Replaces: W10547372) |
|
$ 92.15 | |||||
| 17 | 98460 | Nut, Push-in |
|
$ 12.07 | |||||
| 18 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 19 | WPW10404419 | Upper Harness (Replaces: W10404419) |
|
$ 77.97 | |||||
| 3A | W10356746 | Tray Assembly (gray) |
|
- | |||||
| 9A | W10521060 | Console (granite) |
|
$ 307.48 |
