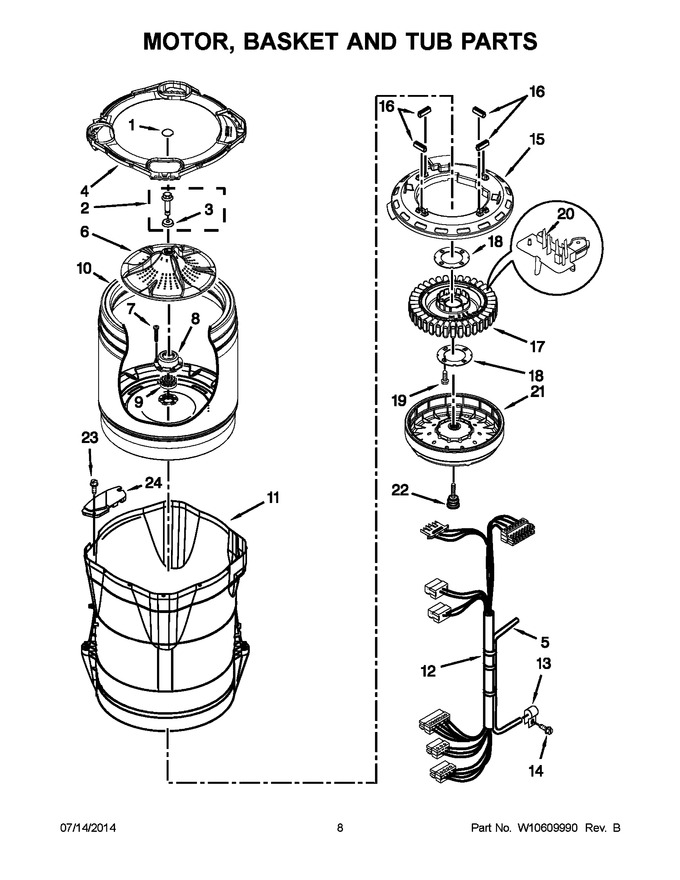

05 - Motor, Basket And Tub Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10305251		Cap, Impeller   (Replaces: W10305251)			Immediately	$ 22.02
2	W10076270		Screw And Washer Assembly				$ 5.83
3	WPW10076260		Washer   (Replaces: W10076260)				$ 11.31
4	WPW10591323		Tub Ring   (Replaces: W10591323)				$ 197.24
5	WP353244		Hose Pressure Switch   (Replaces: 8572540)			Immediately	$ 59.93
6	W11252784		Impeller (washplate)   (Replaces: W10286241)				$ 265.44
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 7.19
8	W10820039		Hub, Basket-driven   (Replaces: W10118114)			Immediately	$ 36.28
9	W10820039		Hub, Basket Driver   (Replaces: 8545953)			Immediately	$ 36.28
10	W10518300		Basket Assembly				$ 692.06
11	W10381078		Assembly, Tub And Drive Shaft			Immediately	$ 712.84
12	W10504822		Harness, Lower				$ 112.75
13	W10005430		Clamp, Cable			Immediately	$ 9.08
14	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.00
15	W10137698		Shield, Drive Motor				$ 37.16
16	8565172		Tube, Buffer (set Of 4)		Appelez-nous	-
17	WPW10419333		Stator, Motor   (Replaces: W10419333)			Immediately	$ 332.78
18	WP8557836		Plate, Stator   (Replaces: 8557836)			Immediately	$ 105.29
19	8534042		Screw				$ 5.65
20	WPW10178988		Rps Assembly   (Replaces: W10178988)			Immediately	$ 49.28
21	280146		Rotor, Main Drive Motor   (Replaces: 8565177)			Immediately	$ 327.31
22	N/P		Bolt, Rotor Assembly (non-serviceable (supplied W/rotor))		Appelez-nous	-
23	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 7.82
24	W10222008		Filter, Dual Pump Hood				$ 61.51
