SELECT A DIAGRAM

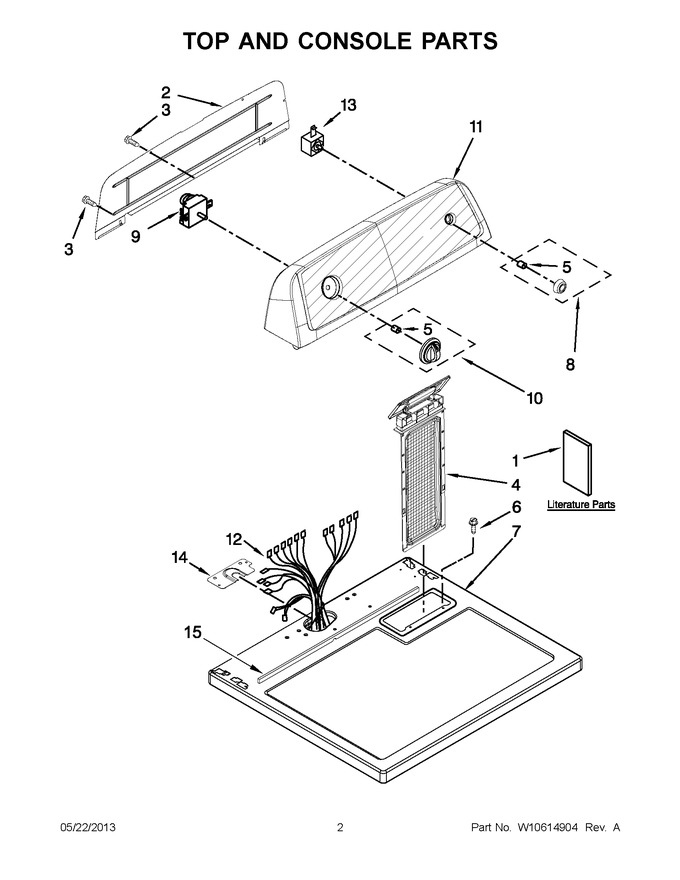

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10514185 | Installation Instructions |
|
- | |||||
| 1 | W10096991 | Use And Care Guide |
|
- | |||||
| 1 | W10185990 | Wiring Diagram |
|
- | |||||
| 2 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 132.39 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 4 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 54.63 | ||||
| 5 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 6 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 7 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 8 | WPW10453948 | Knob, Push To Start (white) (Replaces: W10453948) |
|
$ 51.33 | |||||
| 9 | W10857611 | Timer Assembly (60 Hz.) (Replaces: W10436306) |
|
$ 344.35 | |||||
| 10 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10453946) |
|
Immediately | $ 8.33 | ||||
| 11 | WPW10097039 | Panel, Control (Replaces: W10097039) |
|
$ 332.76 | |||||
| 12 | W10450287 | Harness, Wiring |
|
- | |||||
| 13 | WPW10420741 | Switch, Push To Start (Replaces: W10420741) |
|
Immediately | $ 30.10 | ||||
| 14 | W10112578 | Bracket, Harness |
|
- | |||||
| 15 | W10316616 | Seal, Foam |
|
$ 27.79 |
