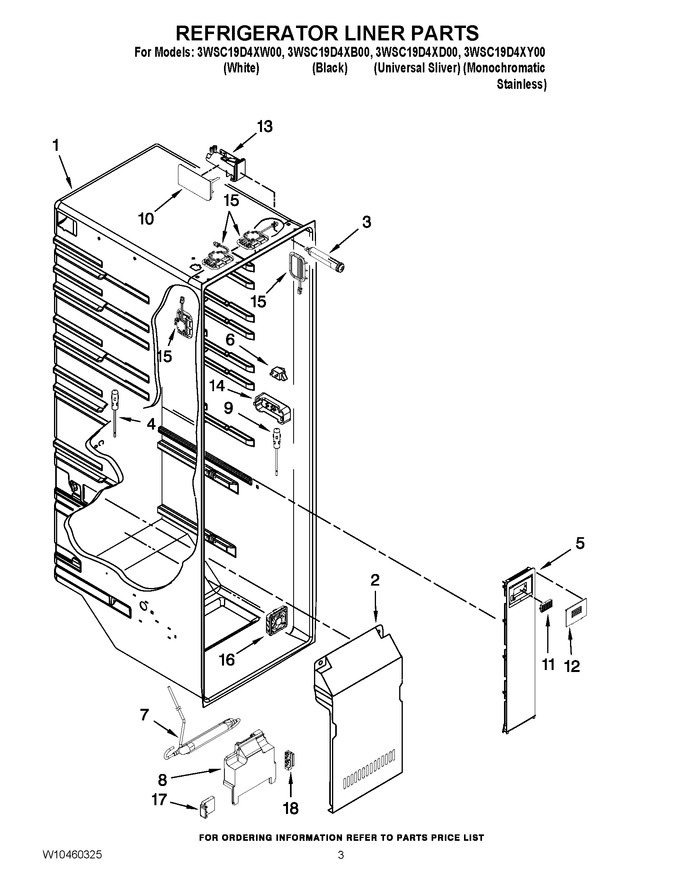

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WPW10387382 | Cover, Evap (Replaces: W10387382) |
|
$ 233.37 | |||||
| 3 | EDR1RXD1B | Water Filter (Replaces: W10295370) |
|
Immediately | $ 49.99 | ||||
| 4 | W10316760 | Thermistor, Evap Fan (Replaces: W10323459) |
|
Immediately | $ 72.91 | ||||
| 5 | W10425172 | Cover, Air Tower |
|
- | |||||
| 6 | W11384469 | Switch Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 37.23 | ||||
| 7 | W11204869 | Reservoir (Replaces: W10341327) |
|
$ 159.69 | |||||
| 8 | W11105244 | Evap Insulation, W/fan Assy (Replaces: W10418398) |
|
- | |||||
| 9 | W11724692 | Thermistor (Replaces: W10280385) |
|
Immediately | $ 32.00 | ||||
| 10 | W10300484 | Cover, Water Filter |
|
$ 123.80 | |||||
| 11 | W10311524 | Air Filter |
|
Immediately | $ 14.34 | ||||
| 12 | W10321024 | Air Filter Cover |
|
- | |||||
| 13 | WPW10238123 | Housing, Water Filter (Replaces: W10238123) |
|
$ 228.39 | |||||
| 14 | WPW10425252 | Cover, Thermistor (Replaces: W10356630) |
|
Immediately | $ 84.17 | ||||
| 15 | W11683241 | Led Light Assy (Replaces: W10279030) |
|
Immediately | $ 259.02 | ||||
| 16 | W10451901 | Fan Assy - Evap (Replaces: W10360454) |
|
$ 257.28 | |||||
| 17 | W11028224 | Support, Evap Lh (Replaces: W10223366) |
|
$ 11.41 | |||||
| 18 | W10837626 | Support, Evap Rh (Replaces: W10223364) |
|
$ 72.25 |
