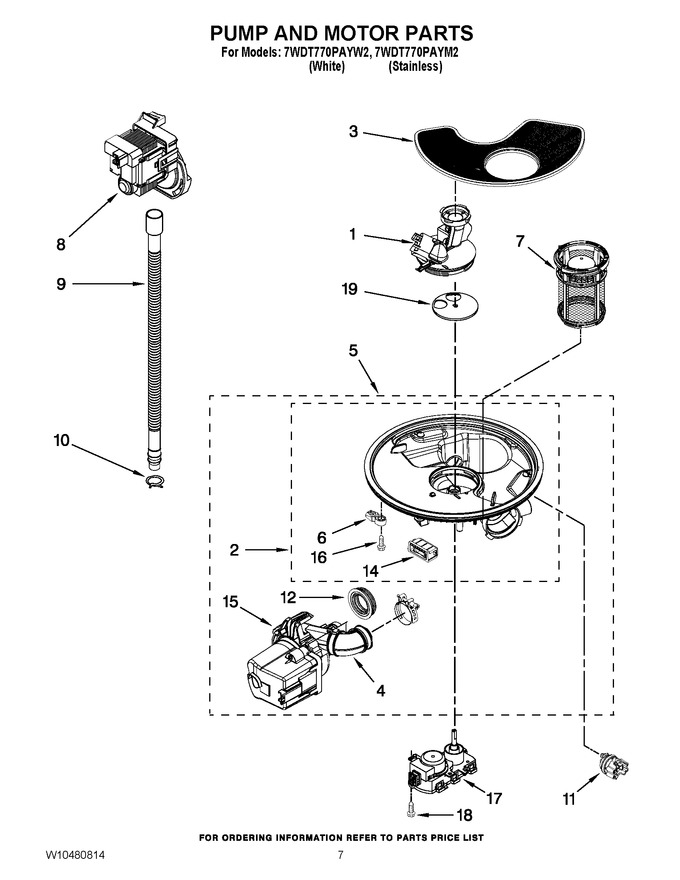

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10463895 | Cover, Outlet (Replaces: W10315329) |
|
$ 29.40 | |||||
| 2 | WPW10455268 | Sump With Seal (Replaces: W10300747) |
|
Immediately | $ 179.66 | ||||
| 3 | WPW10354786 | Screen (Replaces: W10354786) |
|
$ 52.84 | |||||
| 4 | W10445975 | Hose, (includes Clamps) |
|
Immediately | $ 85.38 | ||||
| 5 | WPW10605058 | Sump & Motor Assembly (Replaces: W10300748) |
|
Immediately | $ 329.41 | ||||
| 6 | WPW10372113 | Tab, Sump (Replaces: W10372113) |
|
Immediately | $ 29.36 | ||||
| 7 | W10872845 | Filter Cup, Assy (Replaces: W10425171) |
|
Immediately | $ 55.08 | ||||
| 8 | WPW10348269 | Pump, Drain (Replaces: 8558995) |
|
Immediately | $ 97.46 | ||||
| 9 | 8269144A | Hose, Drain (Replaces: 8269144) |
|
Immediately | $ 29.04 | ||||
| 10 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 11 | WPW10705575 | Optical Water Indicator (Replaces: W10134017) |
|
Immediately | $ 43.81 | ||||
| 12 | WPW10538166 | Grommet (Replaces: W10195068) |
|
Immediately | $ 44.37 | ||||
| 14 | W11243394 | Motor, Isolator (Replaces: W10195086) |
|
$ 14.57 | |||||
| 15 | W11032770 | Motor (also Order 2 Clamps W10169167 And 1 Grommet W10195068) (Replaces: W10440715) |
|
Immediately | $ 229.45 | ||||
| 16 | WPW10348407 | Screw (Replaces: W10348407) |
|
$ 8.06 | |||||
| 17 | W10537869 | Motor, Diverter (Replaces: W10195076) |
|
Immediately | $ 101.62 | ||||
| 18 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 19 | W10195074 | Disc, Diverter |
|
$ 23.68 |
