SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)

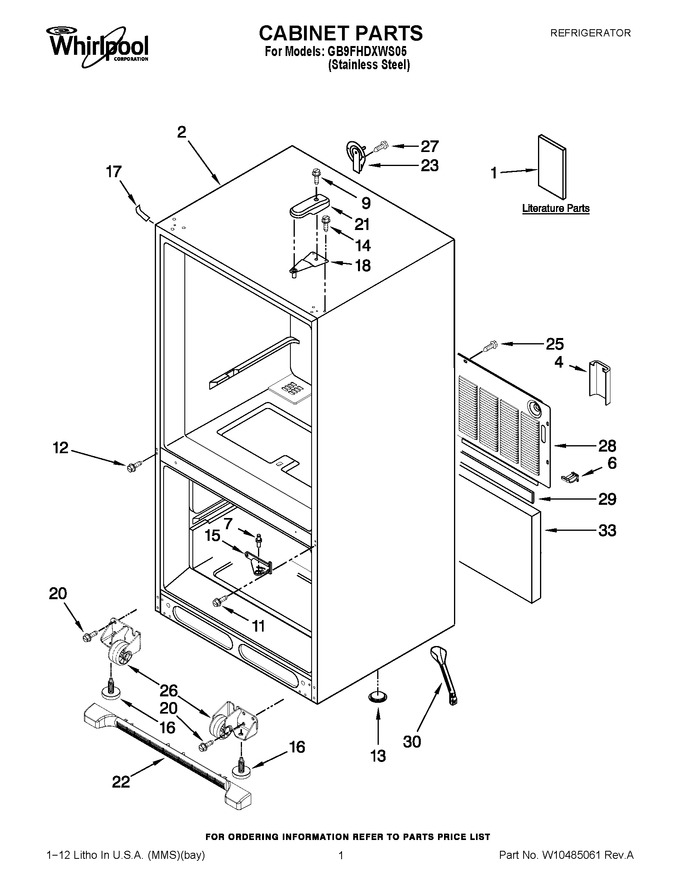

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10258247		Energy Tag		Appelez-nous	-
1	W10448049		Tech Sheet		Appelez-nous	-
1	W10366204		Owners Manual		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
4	W10208592		Guard, Water Valve		Appelez-nous	-
6	W10216614		Sweep, Water Valve				$ 18.51
7	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 8.78
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
11	W11573362		Screw   (Replaces: 12992201)				$ 14.72
12	WP98165		Screw   (Replaces: 12990521)				$ 8.57
13	A3076901		Plug, Button				$ 5.70
14	WP489349		Screw (3)   (Replaces: 12992403)			Immediately	$ 8.43
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607104ED)				$ 167.35
16	WPW10141622		Foot Brake (2)   (Replaces: W10141622)			Immediately	$ 8.24
17	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
18	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 47.13
20	67006564		Screw (8)   (Replaces: 12991302)			Immediately	$ 8.15
21	67001012		Cover, Hinge (black)   (Replaces: 12477601B)				$ 49.71
22	WPW10534167		Grille Assembly (includes Clips) (black)   (Replaces: W10236650)				$ 91.42
23	12726003		Cover, Water Line				$ 19.19
25	67006425		Screw (9)   (Replaces: 12990511)			Immediately	$ 7.30
26	W11820444		Roller Assembly (left)   (Replaces: W10275850)			Immediately	$ 37.35
26	W11820445		Roller Assembly (right)   (Replaces: W10275849)			Immediately	$ 37.35
27	WP98165		Screw   (Replaces: 12990504)				$ 8.57
28	W10210978		Cover, Unit				$ 201.78
29	B5759655		Gasket				$ 13.03
30	W10619951		Tube, Drain   (Replaces: W10210987)			Immediately	$ 42.39
33	12820505		Pad-acoustic				$ 71.70

    View Diagram in Separate Window       Print Part List
