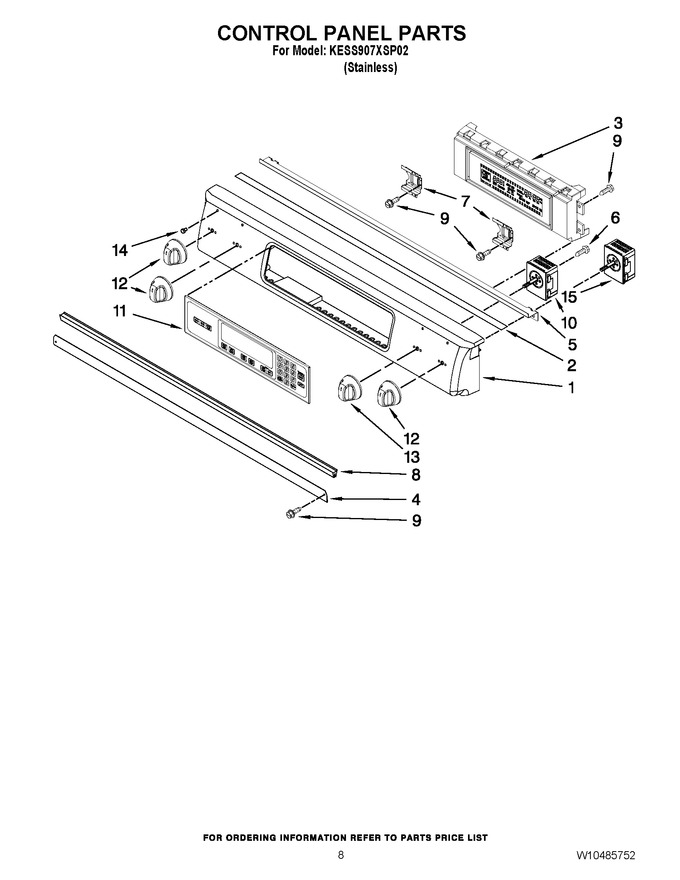

01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts
05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10190662 | Control Panel |
|
$ 232.34 | |||||
| 2 | W10110246 | Gasket, Console |
|
$ 123.31 | |||||
| 3 | W10181439 | Control, Electric |
|
$ 483.37 | |||||
| 4 | W10105370 | Shield, Console Vent |
|
$ 69.83 | |||||
| 5 | W10117524 | Bracket, Console |
|
$ 36.94 | |||||
| 6 | W10061760 | Screw |
|
$ 7.62 | |||||
| 7 | 9761745 | Bracket, Thermostat |
|
$ 40.75 | |||||
| 8 | W10116195 | Gasket, Vent Shield |
|
$ 77.94 | |||||
| 9 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 10 | WP9763761 | Single Switch Rf (Replaces: 9763761) |
|
Immediately | $ 218.61 | ||||
| 11 | WP9761566 | Membrane, Switch (Replaces: 9761566) |
|
Immediately | $ 450.25 | ||||
| 12 | W10246106 | Knob, Dual Lf,lr,rr |
|
$ 51.28 | |||||
| 13 | W10246107 | Knob, Single Rf |
|
$ 42.58 | |||||
| 14 | WP3196068 | Lens, Indicator Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 15 | WP9763762 | Duel Switch Lf,lr,rr (Replaces: 9763762) |
|
Immediately | $ 226.29 |
