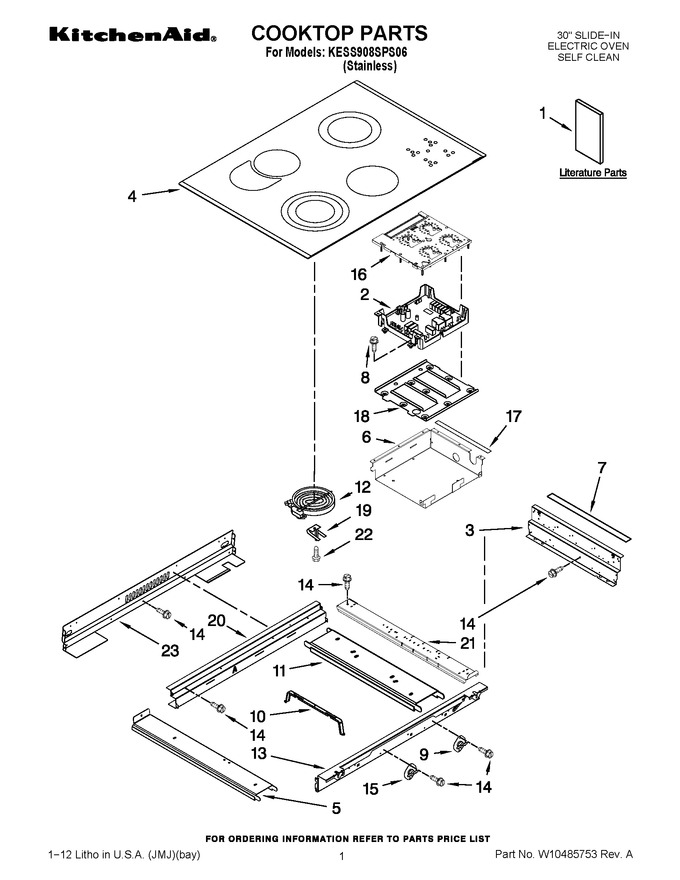

01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts
05 - Control Panel Parts
06 - Internal Oven Parts
07 - Top Venting Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10075750 | Instructions, Installer |
|
- | |||||
| 1 | W10440541 | Installation Instructiions |
|
- | |||||
| 1 | W10449874 | Use & Care Guide |
|
- | |||||
| 1 | W10112131 | Tech Sheet |
|
- | |||||
| 1 | 9763467 | Easy Set Guide |
|
- | |||||
| 1 | W11839019 | Anti-tip Instructions (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | W10181438 | Module, Appliance Manager |
|
$ 375.72 | |||||
| 3 | 9761422 | Frame, Cooktop Side |
|
$ 67.87 | |||||
| 4 | W10110273 | Cooktop (black/stainless) |
|
- | |||||
| 5 | 9757824 | Rail, Element Side |
|
$ 60.29 | |||||
| 6 | 9761638 | Box, Tap Touch |
|
- | |||||
| 7 | W10076030 | Gasket |
|
$ 78.51 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | WP9759944 | Thermostat (Replaces: 9759944) |
|
Immediately | $ 135.08 | ||||
| 10 | 9756821 | Support, Wiring |
|
- | |||||
| 11 | 9757825 | Rail, Eement Center |
|
- | |||||
| 12 | W10248260 | Element, Surface ((lf)2300/1600/800w) |
|
$ 154.48 | |||||
| 12 | WP8523045 | Element, Surface ((rf)1500w) (Replaces: 8523045) |
|
$ 314.18 | |||||
| 12 | W10248257 | Element, Surface ((lr)1800/1000w) |
|
$ 150.74 | |||||
| 12 | WPW10245533 | Element, Surface ((rr)2000/1000w) (Replaces: W10245533) |
|
$ 260.21 | |||||
| 13 | 9761423 | Frame, Cooktop Front |
|
$ 43.33 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.95 | ||||
| 15 | 341196 | Thermostat |
|
$ 33.17 | |||||
| 16 | WP9757063 | Module, Tap Touch (Replaces: 9757063) |
|
Immediately | $ 437.49 | ||||
| 17 | 9761663 | Seal, Heat |
|
$ 56.53 | |||||
| 18 | 9757815 | Support, Module |
|
$ 43.94 | |||||
| 19 | 9759094 | Spring, Locator |
|
$ 7.39 | |||||
| 20 | 9761768 | Frame, Cooktop Rear |
|
$ 73.35 | |||||
| 21 | 9763517 | Rail, Element |
|
$ 62.80 | |||||
| 22 | WP486754 | Screw (Replaces: 246119) |
|
$ 8.01 | |||||
| 23 | 9761723 | Cover, Cooktop Rear |
|
$ 65.23 |
