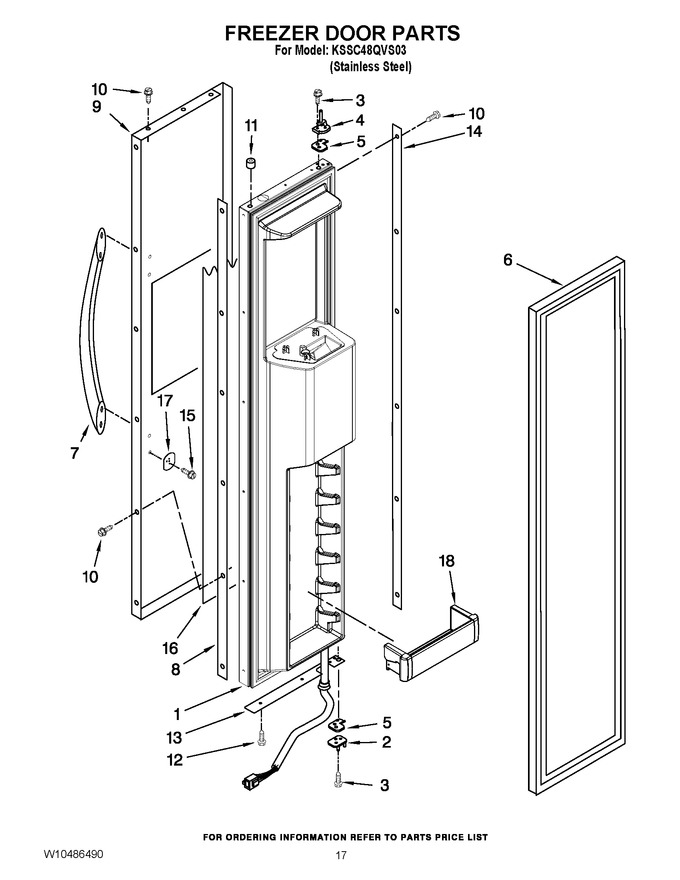

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10292433 | Freezer Door (includes No.6) |
|
- | |||||
| 2 | W11752085 | Hinge, Bottom (Replaces: 2302879) |
|
$ 63.07 | |||||
| 3 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 8.63 | ||||
| 4 | W11724512 | Hinge, Top (Replaces: 2266854) |
|
$ 312.50 | |||||
| 5 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 6 | WP2266903 | Door Gasket, Magnetic (Replaces: 2222812) |
|
Immediately | $ 340.02 | ||||
| 7 | WP2316868 | Handle, Door (stainless Steel) (Replaces: 2316868) |
|
Immediately | $ 281.43 | ||||
| 8 | 2309060 | Spacer, Door-skin (handle Side) (for Stainless Steel Model) |
|
- | |||||
| 9 | 2307311 | Skin, Door (stainless Steel) |
|
- | |||||
| 10 | WP8281250 | Screw (stainless Steel) (Replaces: 8281250) |
|
$ 11.42 | |||||
| 11 | 2005433 | Spacer, Door-skin (top) |
|
$ 23.33 | |||||
| 12 | W10759522 | Screw (Replaces: 488568) |
|
$ 8.24 | |||||
| 13 | 2257386 | Spacer, Door-skin (bottom) |
|
- | |||||
| 14 | W10142296 | Spacer, Door-skin (hinge Side) |
|
- | |||||
| 15 | WP308544 | Screw, Handle (Replaces: 308544) |
|
Immediately | $ 8.30 | ||||
| 16 | 2328903 | Filler, Door (top) |
|
- | |||||
| 16 | 2328904 | Filler, Door (bottom) |
|
- | |||||
| 17 | W10127710 | Plate Door, Handle |
|
Immediately | $ 25.94 | ||||
| 18 | W11590561 | Bin, Door (Replaces: W10323603) |
|
$ 94.23 |
