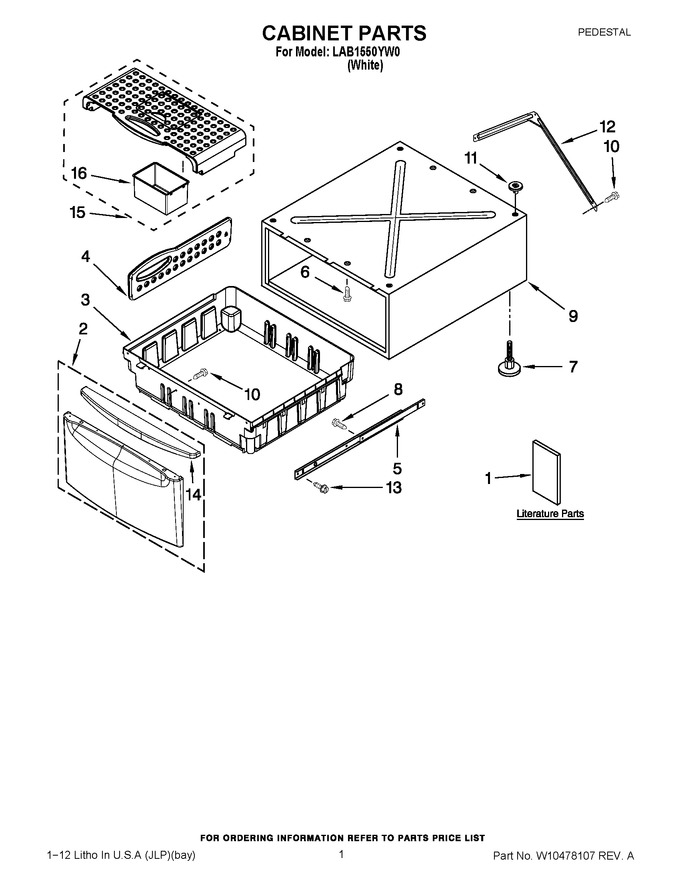

01 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10473914 | Installation Instructions |
|
- | |||||
| 2 | WPW10103454 | Drawer Front (Replaces: W10103454) |
|
$ 345.35 | |||||
| 3 | W11047790 | Drawer Bin (Replaces: W10169635) |
|
$ 205.26 | |||||
| 4 | WPW10189999 | Divider, Drawer (Replaces: W10189999) |
|
Immediately | $ 42.59 | ||||
| 5 | WP8578394 | Slide Assembly (Replaces: 8578394) |
|
$ 103.07 | |||||
| 6 | WPW10346892 | Screw (Replaces: W10346892) |
|
Immediately | $ 7.55 | ||||
| 7 | WP8563585 | Foot Assembly (Replaces: 8563585) |
|
Immediately | $ 14.76 | ||||
| 8 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 3388228) |
|
$ 7.30 | |||||
| 9 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 10 | WPW10213953 | Screw, 8-18 X 1/2 (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 11 | WP8537982 | Pad (Replaces: 8537982) |
|
Immediately | $ 8.69 | ||||
| 12 | WPW10169550 | Brace, Rear (Replaces: W10169550) |
|
$ 41.10 | |||||
| 13 | WP9740849 | Screw, 8-18 X 7/16 (Replaces: 9740849) |
|
$ 7.30 | |||||
| 14 | WPW10243437 | Handle, Drawer (Replaces: W10243437) |
|
$ 230.79 | |||||
| 15 | 8577939 | Shelf Assembly |
|
- | |||||
| 16 | 8577942 | Box, Shelf |
|
$ 69.27 | |||||
| NI | 350938 | Paint, Pressurized Spray (12 Oz.) (primer, Gray) |
|
- | |||||
| NI | 350930 | Paint, Pressurized Spray (12 Oz.) (white) |
|
Immediately | $ 40.12 | ||||
| NI | 72017 | Paint, Touch-up (1/2oz.) (white) |
|
Immediately | $ 12.30 |
