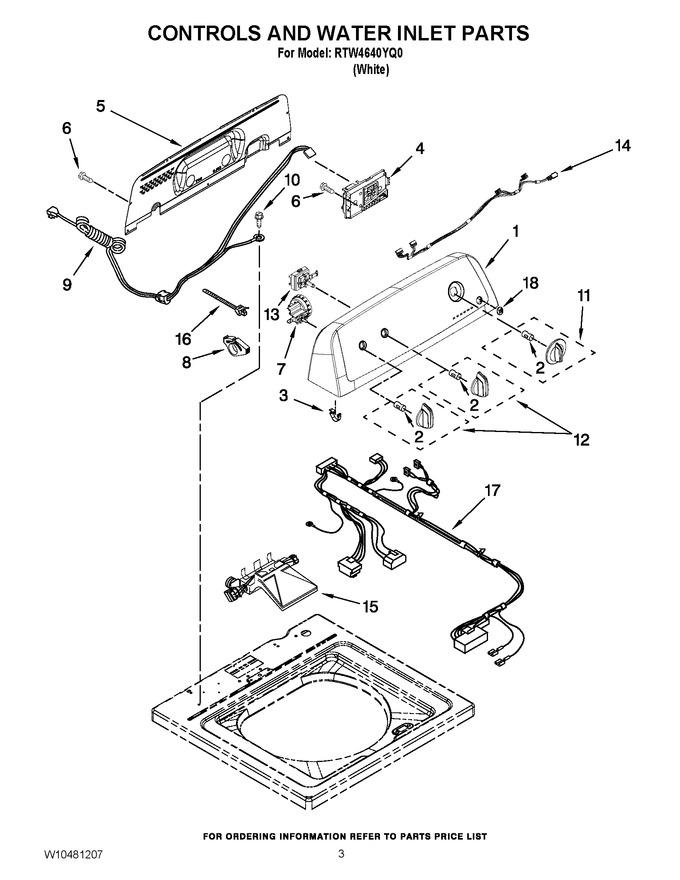

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10420404 | Panel, Console (Replaces: W10420404) |
|
$ 352.97 | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | W10484681 | Control Unit Assembly, Machine & Motor (Replaces: W10454598) |
|
Immediately | $ 248.42 | ||||
| 5 | W10409320 | Panel, Rear Console Cover |
|
$ 263.79 | |||||
| 6 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 7 | WPW10450959 | Switch, Water Level (Replaces: W10450959) |
|
$ 193.25 | |||||
| 8 | WPW10663966 | Clamp (Replaces: W10348582) |
|
$ 224.26 | |||||
| 9 | WPW10525192 | Power Cord (Replaces: W10455732) |
|
$ 163.02 | |||||
| 10 | W10846509 | Screw, 10-32 X 5/8 (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 11 | WPW10711289 | Knob, Timer (Replaces: W10453946) |
|
Immediately | $ 8.33 | ||||
| 12 | WPW10453947 | Knob, Control (Replaces: W10453947) |
|
$ 54.76 | |||||
| 13 | WPW10414397 | Switch, Rotary Encoder (Replaces: W10414397) |
|
$ 136.10 | |||||
| 14 | W10475254 | Harness, Upper |
|
$ 153.86 | |||||
| 15 | WPW10683603 | Inlet Assembly, Water (Replaces: W10423125) |
|
Immediately | $ 81.56 | ||||
| 16 | WPW10339879 | Cable Tie (Replaces: W10339879) |
|
$ 8.30 | |||||
| 17 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 194.92 | |||||
| 18 | WPW10251309 | Pushbutton, Start (Replaces: W10251309) |
|
Immediately | $ 76.00 |
