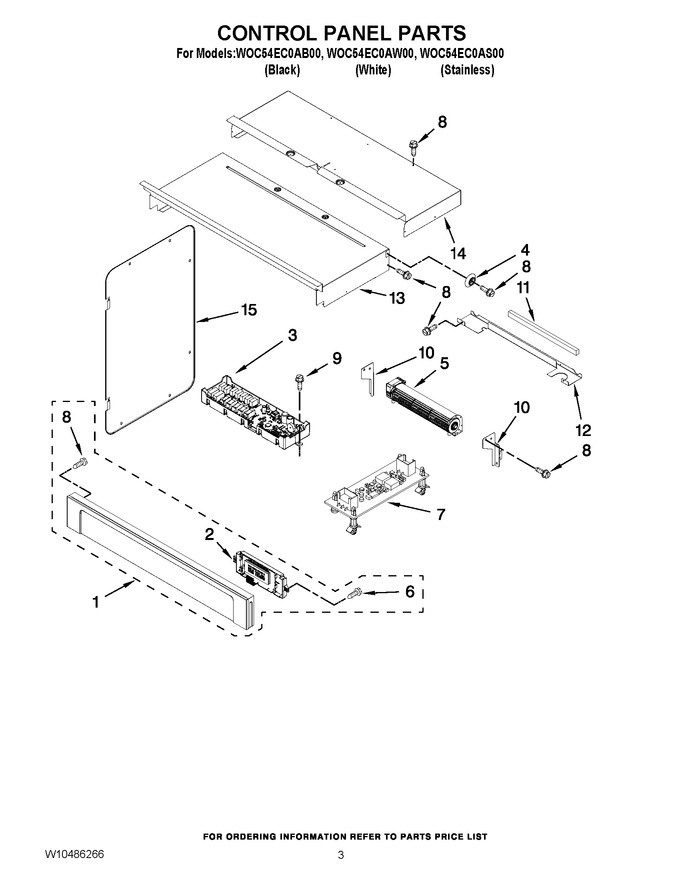

02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Top Venting Parts


08 - Microwave Door Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10861738		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10329415)		Appelez-nous	-
1	W10861739		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10329416)		Appelez-nous	-
1	W10861740		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10329414)		Appelez-nous	-
2	W10286216		Board, Mrc2 Display		Appelez-nous	-
3	WPW10632435		Board, Mrc2 Main   (Replaces: W10286219)				$ 467.22
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10286217		Blower				$ 208.35
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10412514		Board, Interface Wide   (Replaces: W10412514)				$ 318.64
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10318191		Chassis, Divider Back   (Replaces: W10318191)				$ 81.94
13	W10318158		Chassis, Cover Top Front 30``		Appelez-nous	-
14	W10283031		Chassis, Cover Top Back 30``		Appelez-nous	-
15	W10283033		Chassis, Side		Appelez-nous	-
