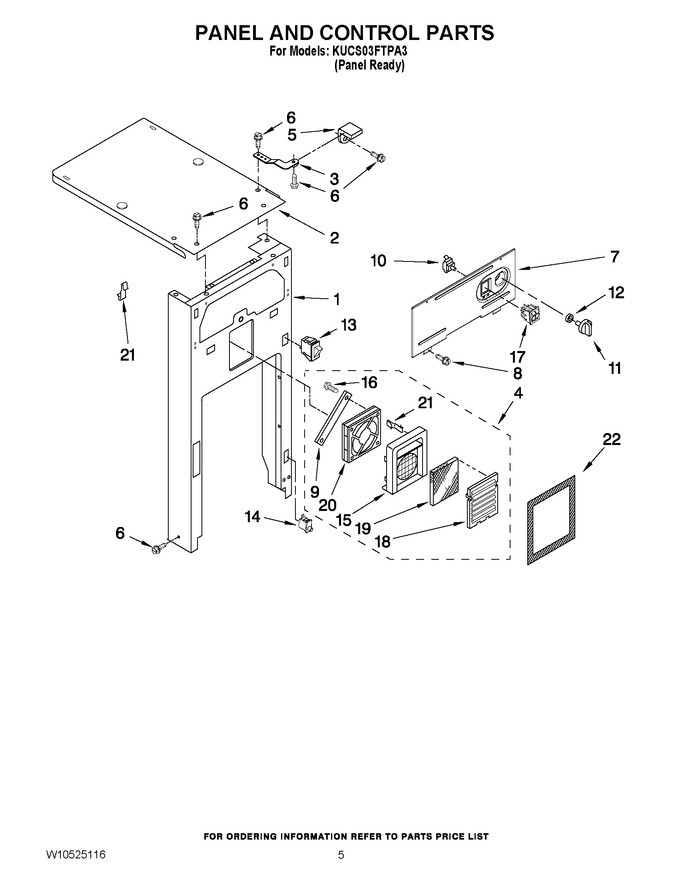

05 - Panel And Control Parts
06 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10242567 | Panel, Front Frame |
|
$ 350.15 | |||||
| 2 | W11684543 | Cover, Top (Replaces: 608572) |
|
- | |||||
| 3 | W11729437 | Bracket, Retainer (Replaces: 9871993) |
|
Immediately | $ 24.48 | ||||
| 4 | 9871893 | Fan Mount Assembly |
|
$ 348.34 | |||||
| 5 | WP780239 | Bracket, Retainer (alternate) (Replaces: 780239) |
|
$ 28.53 | |||||
| 6 | WP489478 | Screw (Replaces: W10001260) |
|
$ 8.18 | |||||
| 7 | W11447162 | Escutcheon, Control (Replaces: W10242572) |
|
Immediately | $ 100.78 | ||||
| 8 | 246131 | Screw |
|
- | |||||
| 9 | 4152703 | Strap, Fan |
|
$ 75.32 | |||||
| 10 | WP9871971 | Switch, Rotary Start-run (Replaces: 9871971) |
|
Immediately | $ 186.64 | ||||
| 11 | WP9871920 | Knob, Rotary Switch (Replaces: 9871920) |
|
$ 69.55 | |||||
| 12 | WP777383 | Nut, Rotary Switch (Replaces: 777383) |
|
$ 12.83 | |||||
| 13 | 9871829 | Switch, Drawer |
|
$ 93.95 | |||||
| 14 | WPW10242556 | Switch, Pushbutton (Replaces: W10242556) |
|
$ 158.45 | |||||
| 15 | 9871893 | Compartment, Air Freshener (Replaces: 4151442) |
|
$ 348.34 | |||||
| 16 | WP3351614 | Screw (Replaces: 780034) |
|
Immediately | $ 7.30 | ||||
| 17 | W11032731 | Switch Assembly (Replaces: 9871973) |
|
Immediately | $ 89.22 | ||||
| 18 | WP9871099 | Cover, Air Freshener (Replaces: 9871099) |
|
$ 71.65 | |||||
| 19 | WP4151750 | Filter, Charcoal (Replaces: 4151750) |
|
$ 18.60 | |||||
| 20 | 9871893 | Fan, Filter (Replaces: 9871051) |
|
$ 348.34 | |||||
| 21 | 4151897 | Clip, Wire |
|
$ 7.40 | |||||
| 22 | W10540355 | Deodorizer Block (green Apple) (Replaces: 9872166GA) |
|
$ 15.89 |
