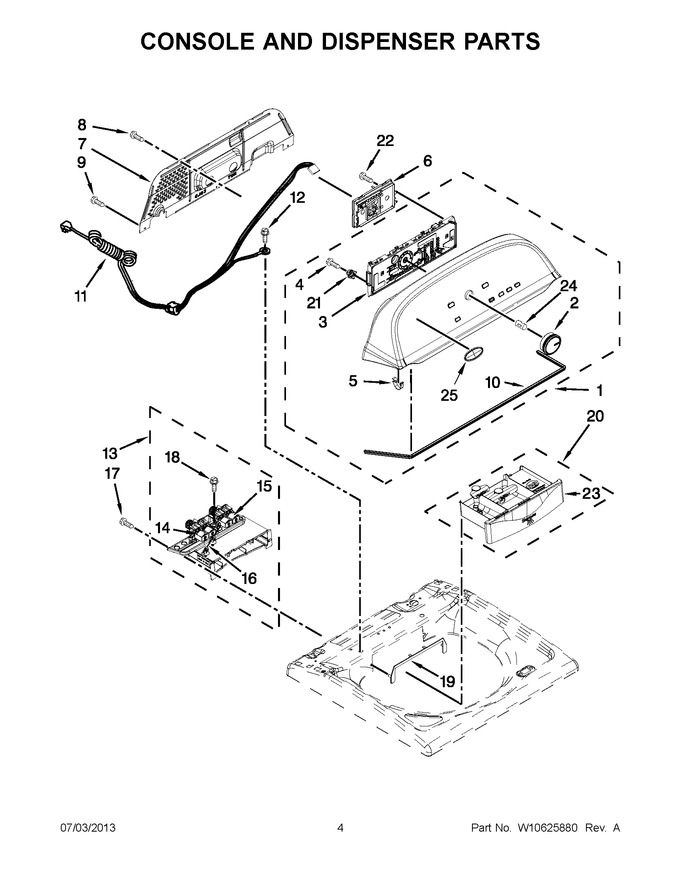

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10560121		Console (white)		Appelez-nous	-
1	WPW10560122		Console (chrome Shadow)   (Replaces: W10560122)				$ 497.57
2	W10579296		Assembly, Control Knob (grey)				$ 56.06
2	W10579298		Assembly, Control Knob (white)				$ 43.80
3	WPW10560210		User Interface   (Replaces: W10560210)				$ 385.72
4	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10581552		Control Unit Assembly, Machine And Motor				$ 284.42
7	W10420984		Panel, Console Rear Cover				$ 344.83
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
9	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
10	W10280079		Seal, Console		Appelez-nous	-
11	WPW10525195		Cord, Power   (Replaces: W10525195)				$ 143.92
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	WPW10601448		Housing Assembly   (Replaces: W10601448)				$ 292.51
14	W11168740		Valve, Cold Water Inlet   (Replaces: W10240949)			Immediately	$ 163.15
15	W11220205		Valve, Hot Water Inlet   (Replaces: W10240947)				$ 229.51
16	W10601128		Harness, Valve		Appelez-nous	-
17	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
18	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.80
19	W10240946		Bezel, Dispenser				$ 23.60
20	W11210991		Drawer, Dispenser Assembly   (Replaces: W10560137)				$ 106.18
21	W10274524		Tensioner, Fascia		Appelez-nous	-
22	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
23	W11210991		Facia, Dispenser   (Replaces: W10560134)				$ 106.18
24	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
25	WPW10393264		Badge (grey)   (Replaces: W10393264)				$ 67.74
